Water pump repair kit for Yanmar 6LY2 Pumps 119574-42500 10-13170 119574-42552

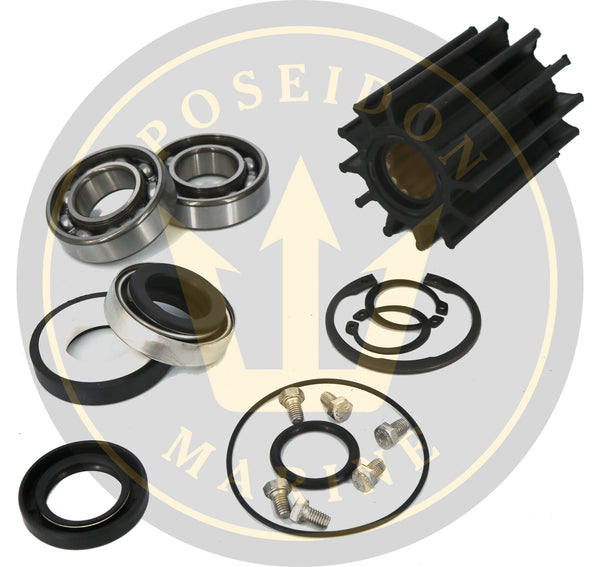

Repair kit consists of:
- Impeller kit RO: 119574-42550 , 119574-42551
- O-ring, pump cover RO: 119574-42570
- Bearings RO: 119578-42660
- Lip seal RO: 119578-42650
- O-ring, shaft RO: 119578-42640
- Bolts RO: 119574-42580
- Snapring (2) RO: 119578-42670
- Snapring, bearing retainer RO: 119578-42680
It will fit the following engines
- 6LY2-ST , 6LY2-STVY , 6LY2-WST , 6LY2-WDT , 6LY2-W DTZY 6LY2M-WDT , 6LY2M-WST , 6LY2-STE , 6LY2A-STP , 6LY2A-UTP
- 6LYA-STP , 6LYA-STE , 6LYA-UTE
Known pumps:
119574-42500 , 119574-42501 , 119574-42502 , 719574-42700
10-13170 , 10-13170-01
Please consult the scheme provided and impeller size.
DI:24.30 mm
DE:65.00 mm
H:80.00 mm
If in doubt, please contact.
