Water pump repair kit for Yanmar 1GM 1GM10 128170-42070 for pump 128170-42200
High-quality marine engine spare parts.
Water pump repair kit for Yanmar:
- 1GM10 1GM10VE 1GM10-B 1GM10C 1GM10L
Available both Major (With Impeller) and minor (Without Impeller)
You can also purchase impeller kit separately which you may find in our store with part number:

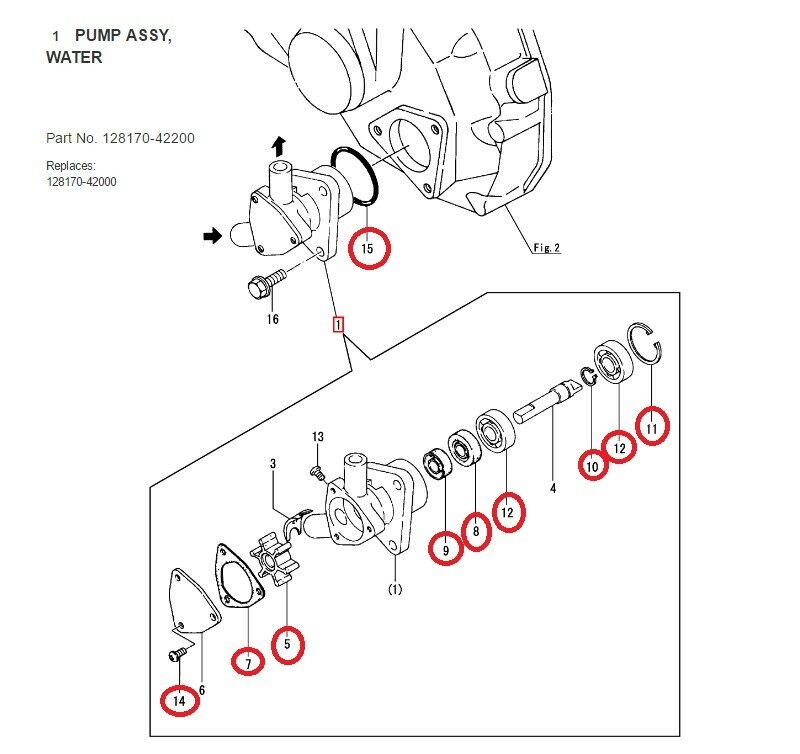

Known pumps: 128170-42200 128170-42000

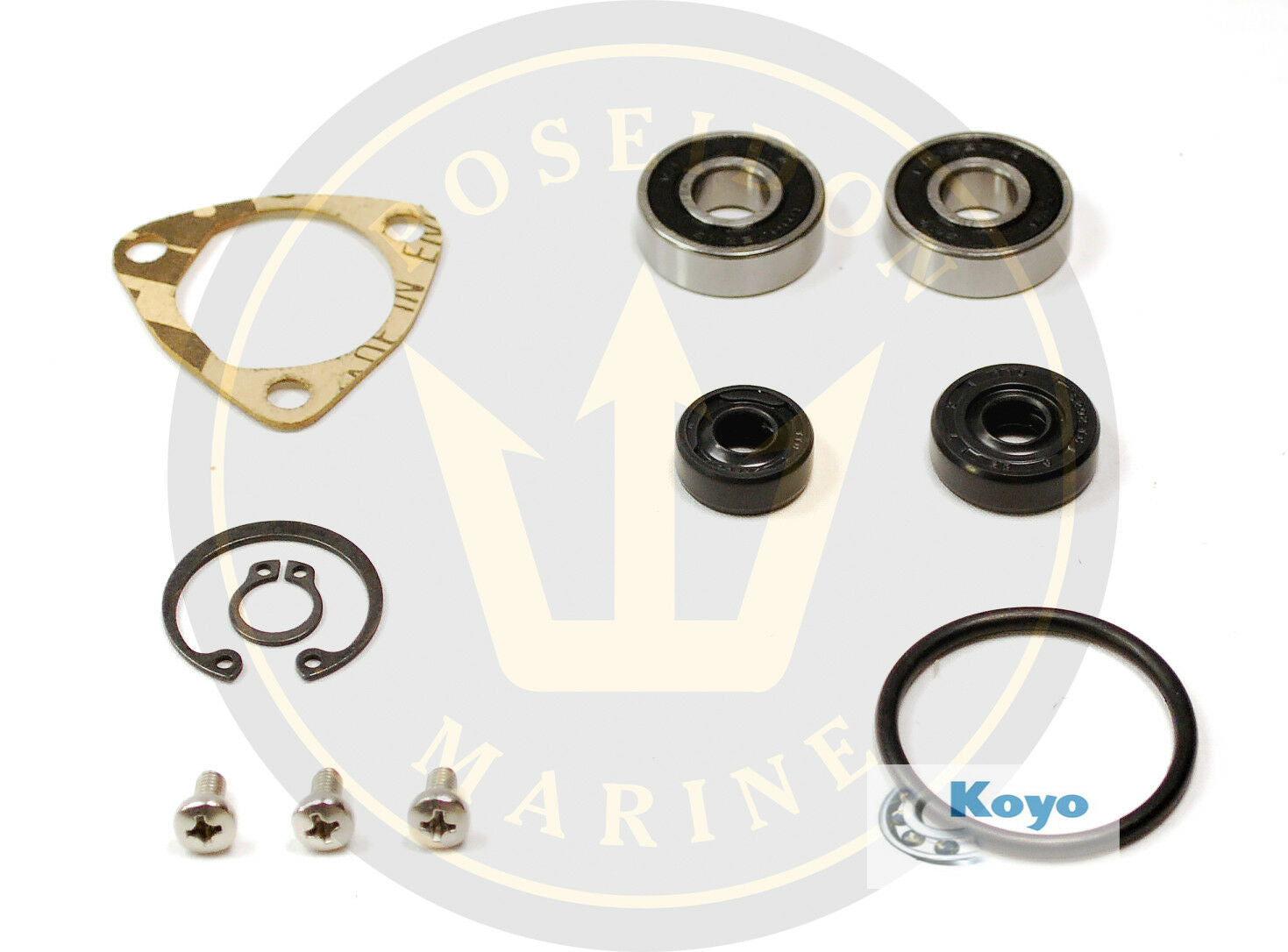

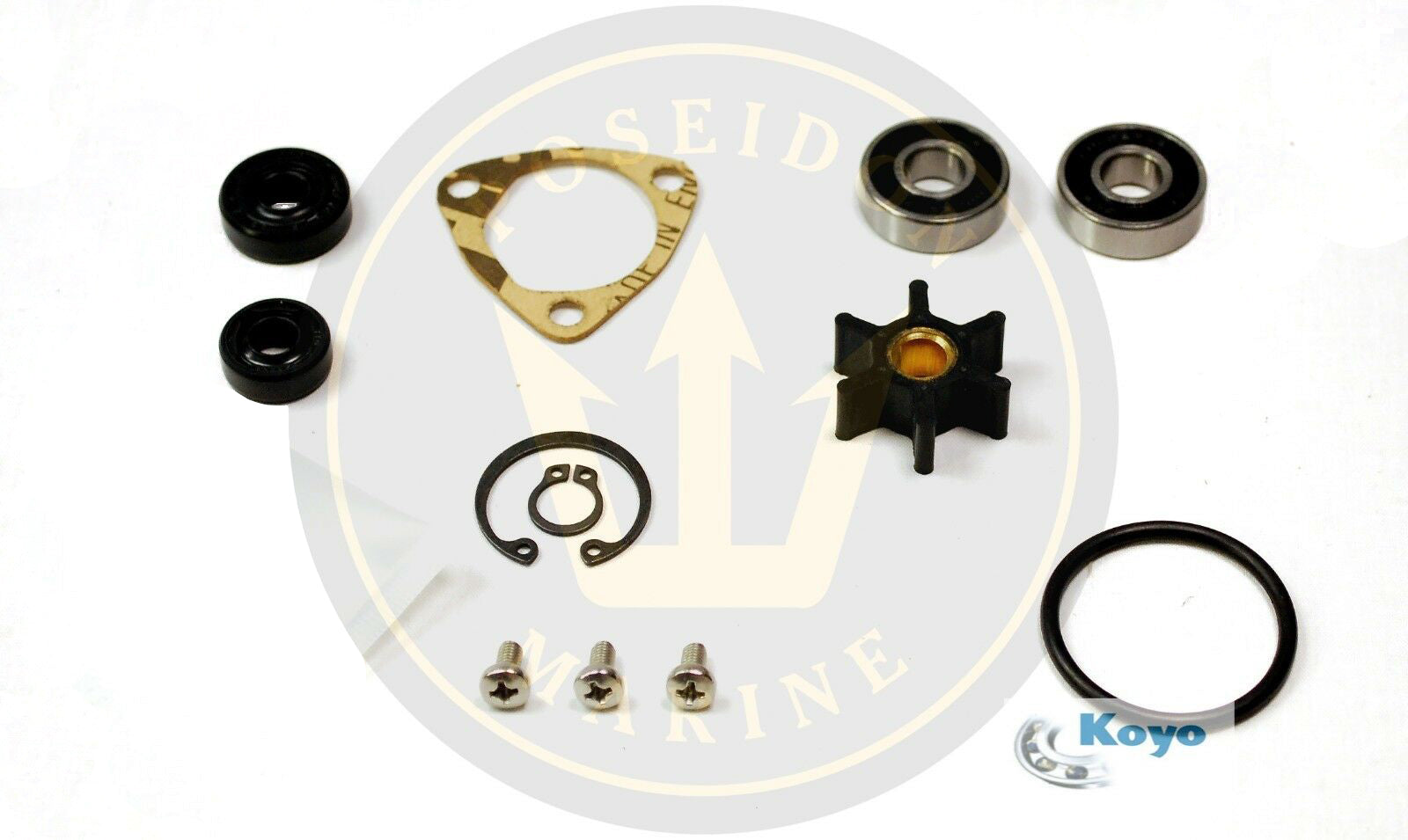

Repair kit consists of:
- Impeller kit RO: 128170-42070 128176-42080 / 42090 (ONLY MAJOR)
- Gasket RO: 128170-42090
- Bearings RO: 24101-060004
- Seal S.S. spring RO: 128170-42110
- Seal S.S. spring RO: 124240-91450 => 128170-42120 The first part number is a single lip seal, the latter double lip. Functionally the same. Double lip provided.
- Bolts S.S. RO: 26554-040082
- Snapring, shaft RO: 22242-000100
- Snapring, bearing retainer RO: 22252-000260
- Oring, pump to engine RO: 24321-000350
- Portion of lubricant. (ONLY MAJOR)
The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
