Water pump repair kit for Yanmar 2GM 3GM inc: 104211-42070 for pump 128270-42000
High-quality marine engine spare parts.
Water pump repair kit for Yanmar:
- 2GM , 3GM , 3GMD , 1980-83
- 2GM20 , 3GM30, 83-05 raw water cooled (no antifreeze), made in Japan.
- 2QM15 , 1977-80
- SB8 SB12
- YSB8 YSB12
For pumps with 58mm (2 1/4") water pump cover
Will not fit 1997 and later European made. (E prefix before serial number on the European models)
Will not fit fresh water cooled engines (engines with radiator/heat exchanger)
Available both Major (With Impeller) and minor (Without Impeller)
You can also purchase impeller kit separately which you may find in our store with part number:
Known pumps: 128270-42000 , 128270-42001 , 128270-42002 , 728270-42000 , 728270-42001 , 728270-42002

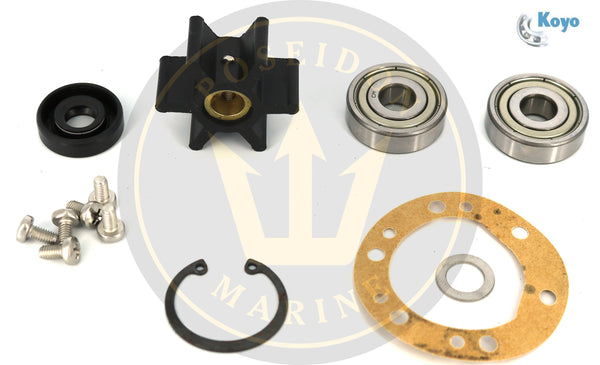

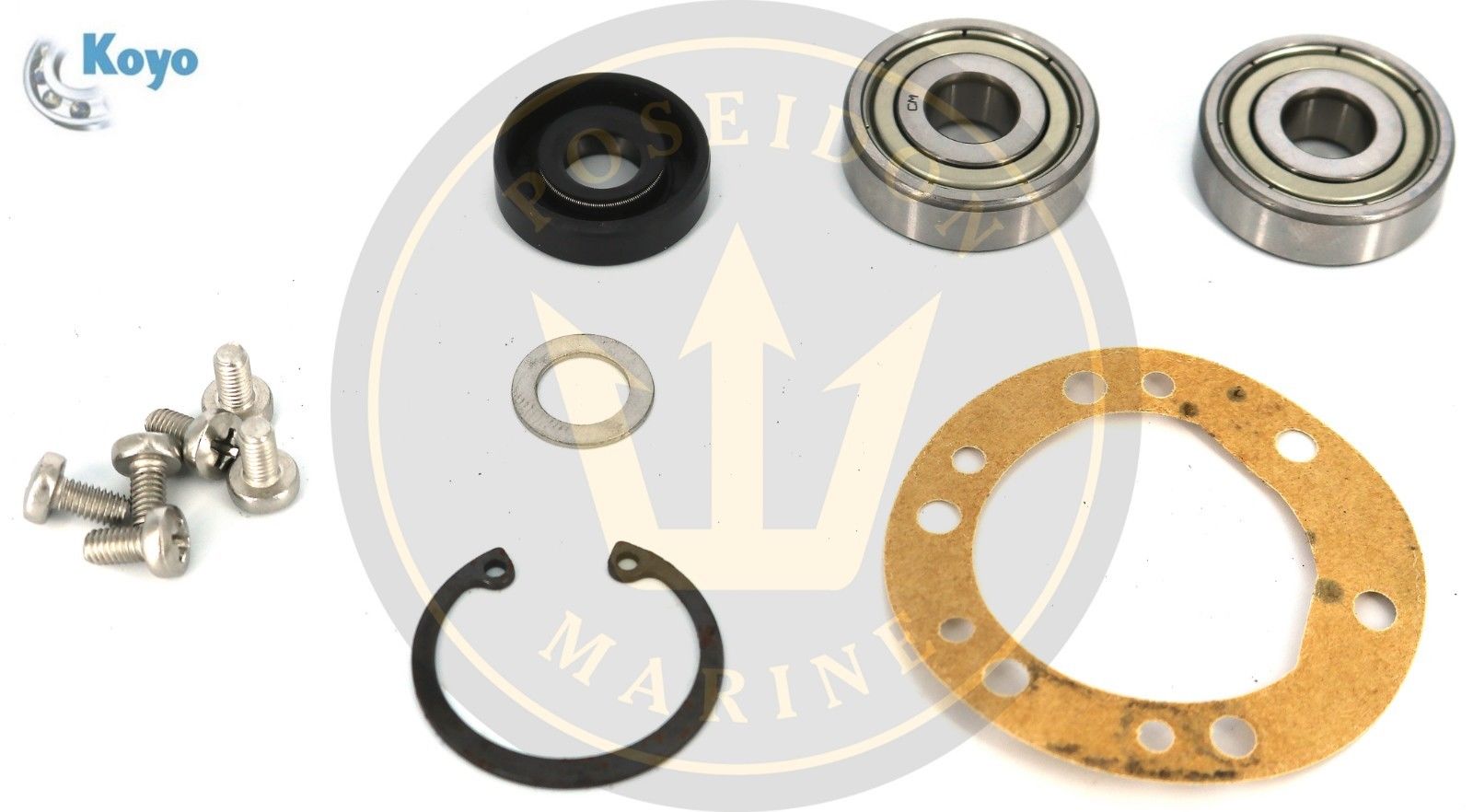

Repair kit consists of:
- Impeller kit RO: 104211-42070 104211-42071 (ONLY MAJOR)

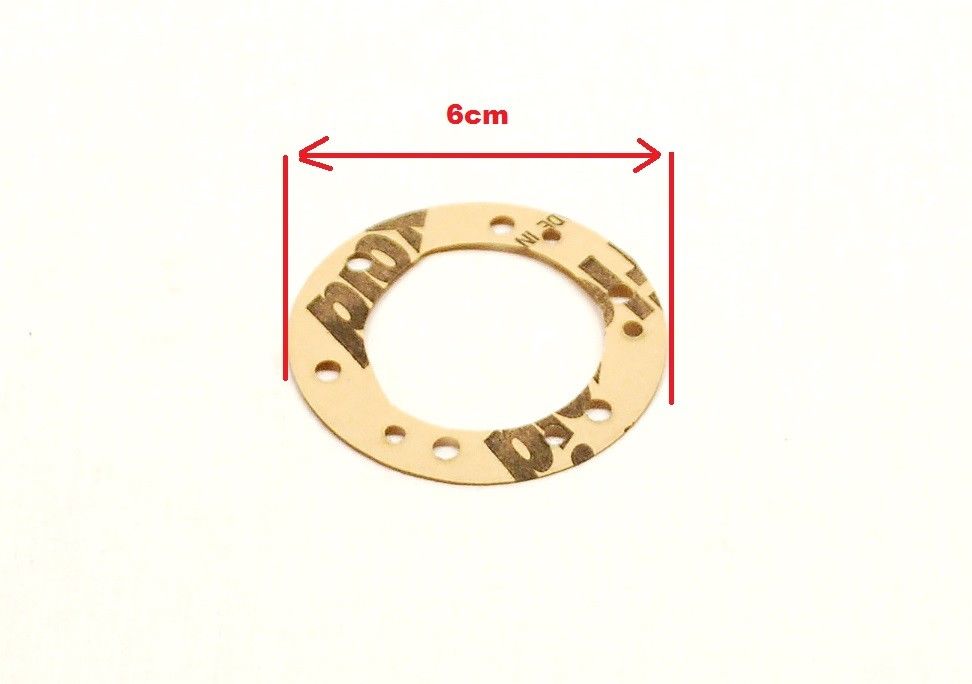

- Gasket RO: 104211-42090
- Bearings RO: 24107-062004
- Seal S.S. spring RO: 104211-42100
- Spacer S.S. RO: 104211-42130
- Snapring, bearing retainer RO: 22252-000300
- Bolts S.S. RO: 26554-040082
Buy this kit if:
- Your impeller dimensions (Dshaft X Dexternal X Height) are (9.54 X 39.60 X 18.94)mm
- Your pump cover measures exactly 58mm (2 1/4"). Otherwise not correct part for you.
- The impeller secures onto the shaft with a pin that passes through the impeller.
- Your engine is not equipped with heat exchanger (radiator)
