PoseidonMarine® Water pump repair kit Yanmar 2GMF 3GMF pump 124223-42092 121575-42000
High-quality marine engine spare parts.
PoseidonMarine® water pump repair kit for Yanmar marine diesel:
- 2GMF, 3GMF, 3GMDF, 1980-1983
- 2GM20F, 3GM30F 1983-2005 freshwater-cooled (antifreeze) models made in Japan.
- 3HM, 3HMF 1980-1983
- 3HM35, 3HM35F 1983-1992

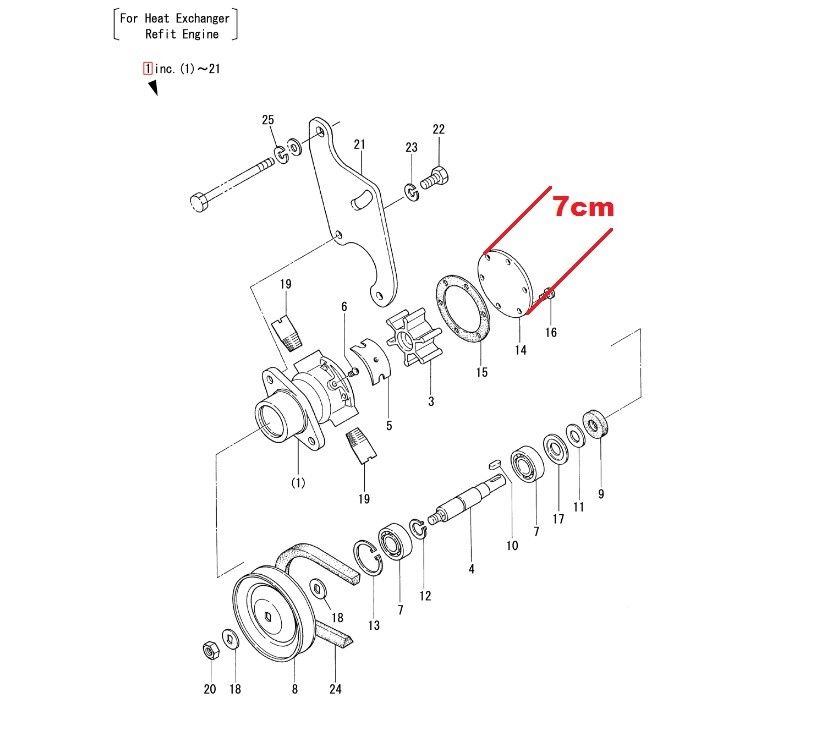

For pumps with 70mm (2 3/4") water pump cover
Will not fit 1997 and later European-made. (E prefix before serial number on the European models)
Will not fit raw water-cooled engines (engines without radiator/heat exchanger)

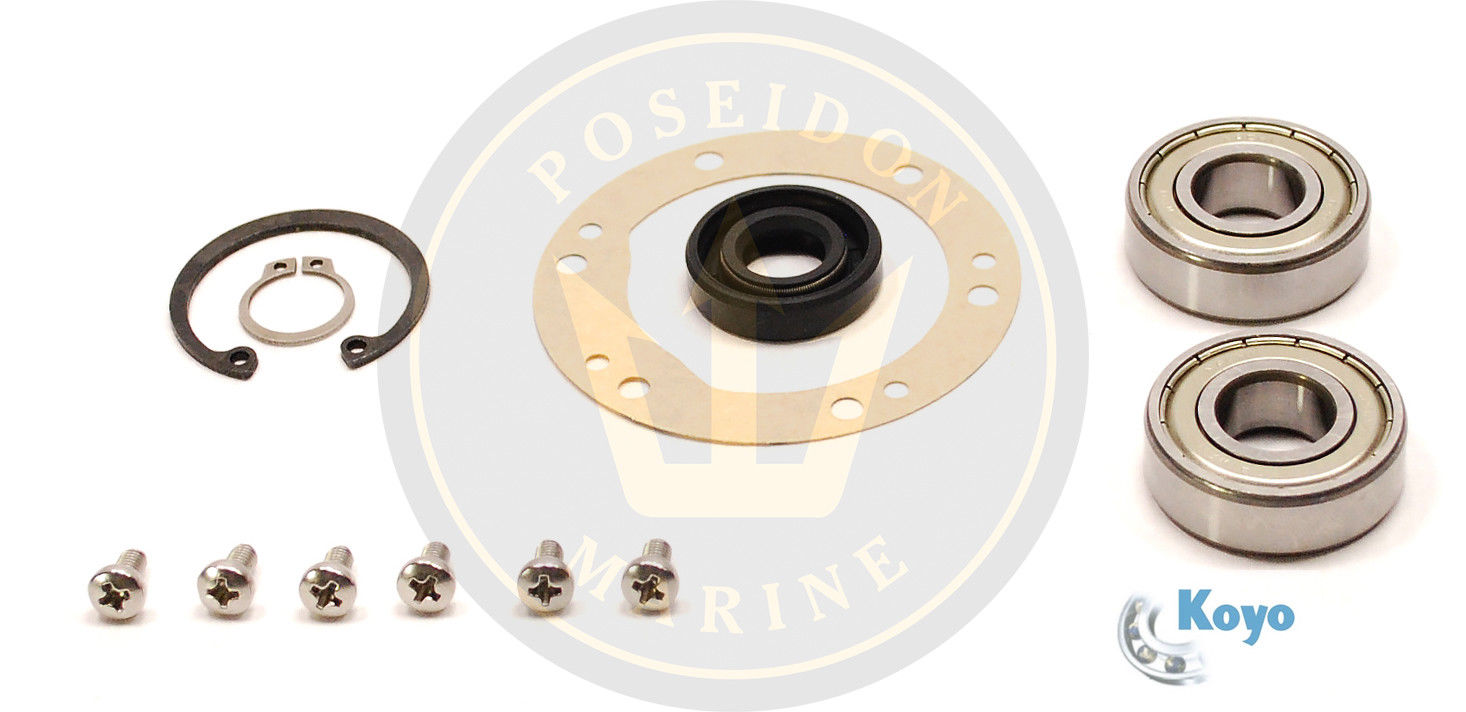

This kit is available both as Major (with an impeller) and as Minor (without an impeller).
Compatible pumps: 121575-42000, 721575-42700, 721575-42701, 721575-42702

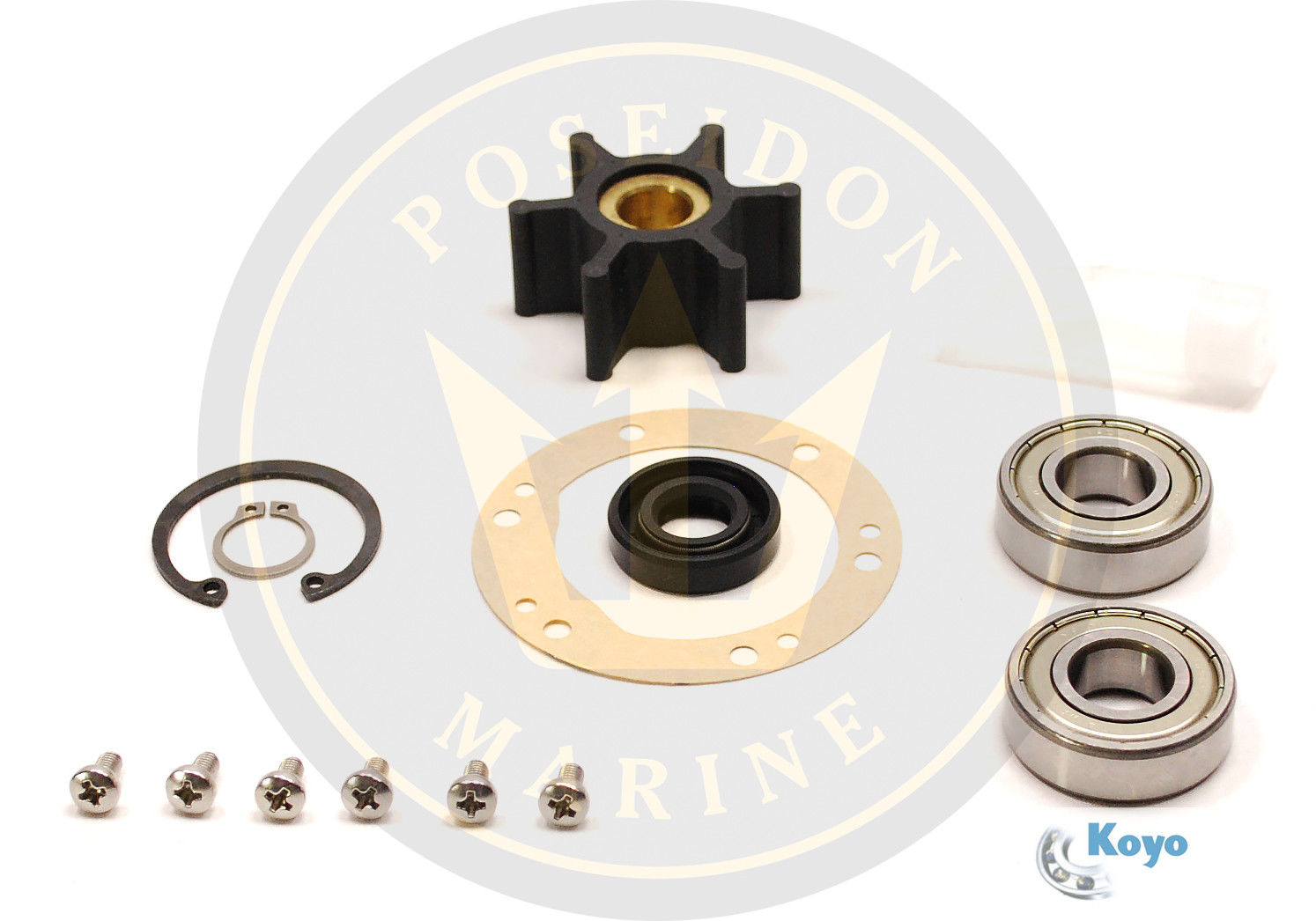

This repair kit consists of the following parts:
- Impeller kit: 124223-42092 128296-42070 (ONLY MAJOR)
- Gasket: 124223-42110
- Bearings: 24107-062024
- Seal: 124223-42080
- Retaining ring, bearing: 22252-000350
- Retaining ring, shaft: 22242-000150
- Bolts: 26554-040082
Buy this kit if:
- Your impeller dimensions (Dshaft X Dexternal X Height) are (12.75 X 50.80 X 22.10) mm.
- Your pump cover measures exactly 70 mm (2 3/4"). Otherwise, it is not the correct part for you.
- The impeller secures onto the shaft with a keystone.
- Your engine is equipped with heat exchanger (radiator)
Quality Assurance: Quality is synonymous with PoseidonMarine, and we are committed to ensuring that the bearings included in this kit are far from substandard imitations. We exclusively utilize high-quality bearings recognized by the World Bearing Association (WBA), such as KOYO, SKF, NACHI, NTN etc. This meticulous selection demonstrates our respect for your valuable time, which you will dedicate to repairing this pump. By choosing our products, you can rest assured that your investment will yield long-lasting results, minimizing the need for frequent repairs.
This PoseidonMarine® part is warranted to be free from defects in materials or workmanship under normal use and service. An impeller kit is replaced every 500 hours or every season, a wear kit every 1000-1500 hours, and a shaft kit every 1500-3000 hours.
PoseidonMarine® Water pump repair kit Yanmar 2GMF 3GMF pump 124223-42092 121575-42000
This product replaces the following manufacturer's part nr:
- Yanmar: -
- PoseidonMarine order number: PM121575-4200
The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
