Sea Water Pump Shaft Repair kit for Volvo Penta MD2010 MD2020 D1-13 D1-20 Pump 3593654

  • €99,90
  • Save €30,00
Tax included. Shipping calculated at checkout.


High-quality marine engine spare parts from Sweden.

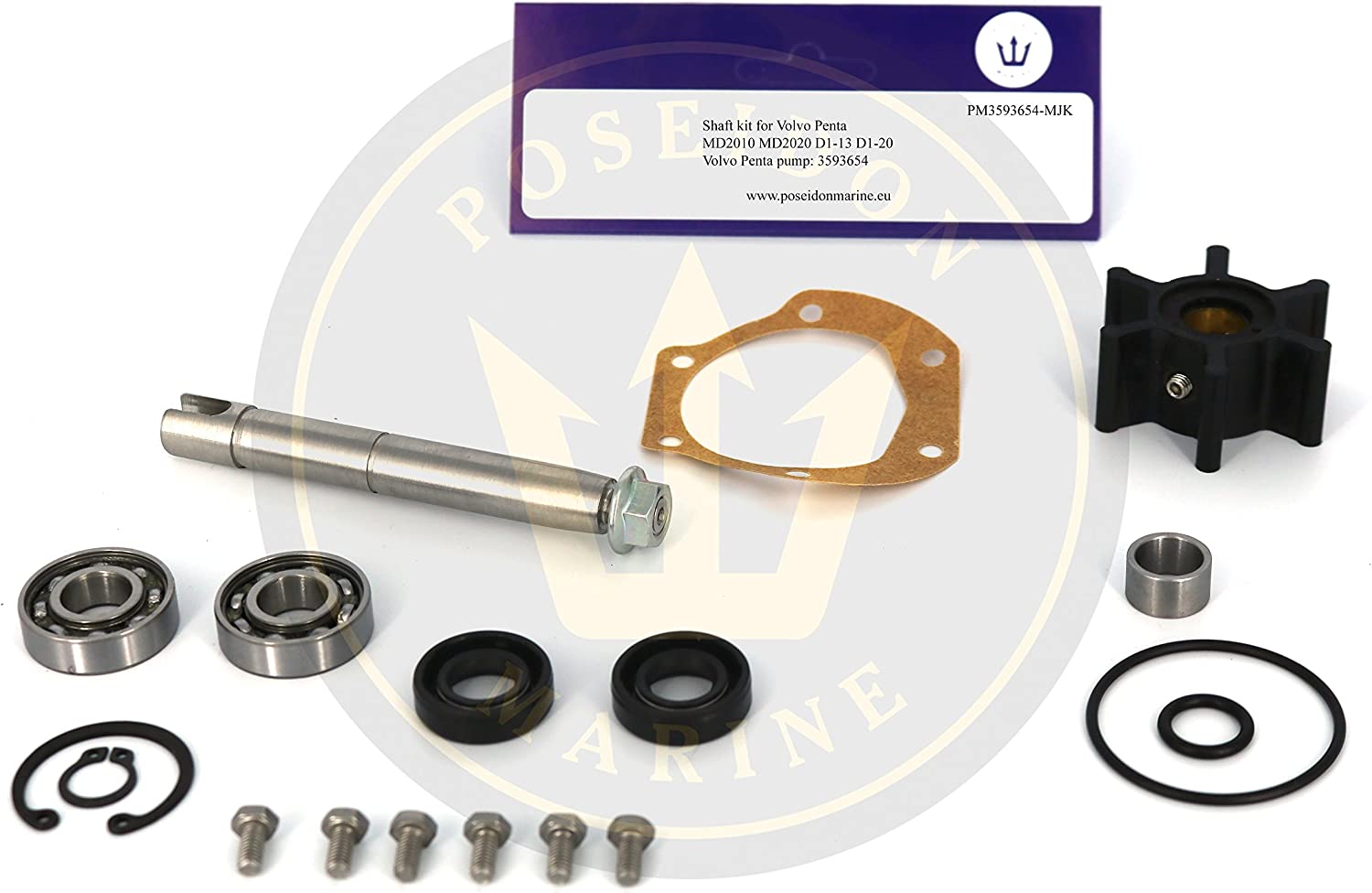

Major water pump repair kit consists of:

  • Impeller kit 3593659 22222936 with gasket and pin.
  • Pump shaft, precision machined, made of 316 S.S.
  • Bushing RO: 3581367
  • Bearings RO: 181717
  • Seals S.S spring RO: 833996
  • Snap ring, shaft RO: 914446
  • Snapring, bearing retainer RO: 914515
  • Bolt kit ( S.S. bolts) 21951302
  • Shaft o-ring RO: 925055 O-ring, pump to the engine
  • Shaft retaining nut

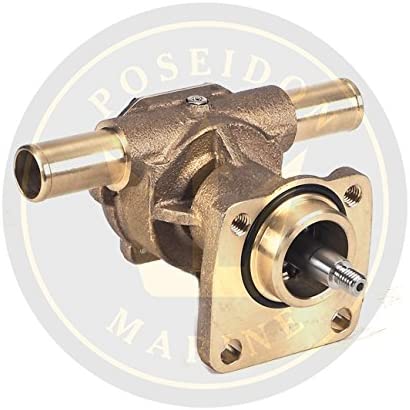

Mind the second picture showing your pump Built exclusively for seawater pump 3593654 found in the following Volvo Penta diesel engines:

  • MD2010C, MD2010D
  • MD2020C, MD2020D
  • D1-13A, D1-13B, D1-13F
  • D1-20A, D1-20B, D1-20F

The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated
