Sea Water Pump Shaft Repair Volvo Penta MD2030 MD2040 D1-30 D2-40 Pump 3593655
High-quality marine engine spare parts.
PoseidonMarine® premium-quality water pump shaft kit for Volvo Penta:
- MD2030A, MD2030B, MD2030C, MD2030D
- MD2040A, MD2040B, MD2040C, MD2040D
- D1-30A, D1-30B, D1-30F
- D2-40A, D2-40B, D2-40F

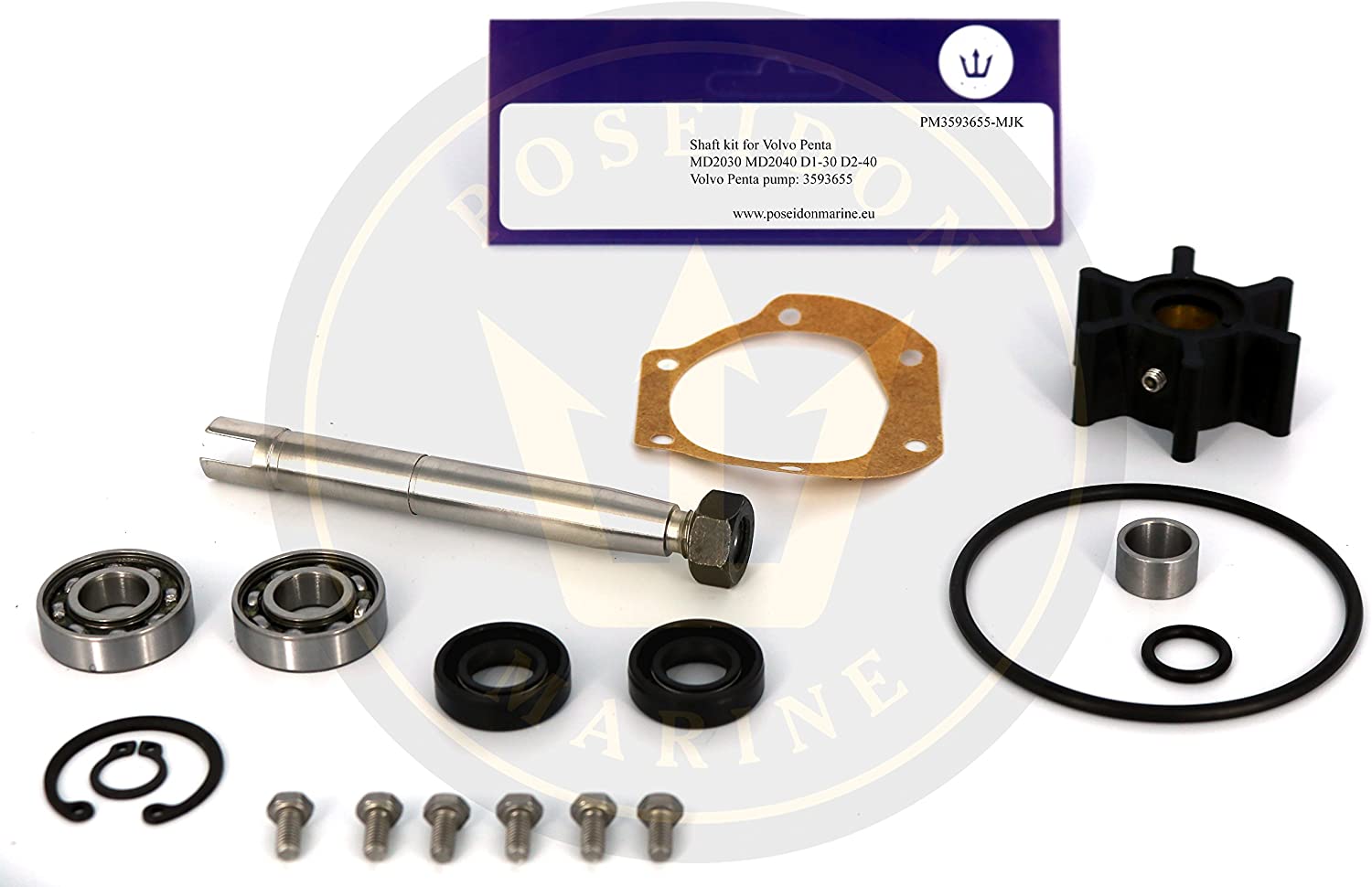

This repair kit consists of the following parts:
- Impeller kit 3593659 22222936 with gasket and pin.
- Pump shaft, precision machined, made of 316 S.S.
- Bushing: 3581367
- Bearings: 181717
- Seals: 833996
- Snap ring, shaft: 914446
- Snapring, bearing retainer: 914515
- Bolt kit ( S.S. bolts) 21951302
- Shaft o-ring: 925055
- O-ring, pump to the engine: 3580380
- Shaft retaining nut
Impeller dimensions:
DI:12.66 mm
DE:50.80 mm
H:22.10 mm
6 blades, bronze hub

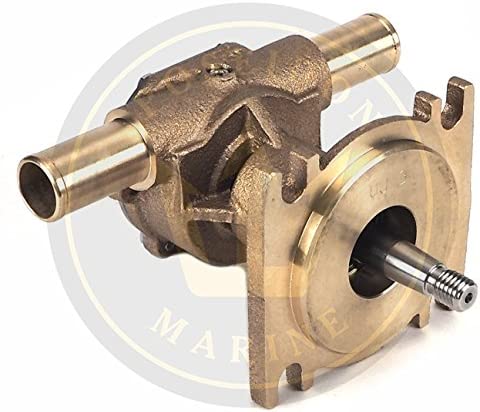

Known pumps: 3593655
Sea Water Pump Shaft Repair Volvo Penta MD2030 MD2040 D1-30 D2-40 Pump 3593655
This product replaces the following manufacturer's part nr:
- Volvo Penta: 21951416
- Recmar: REC
- Orbitrade: ORB
- PoseidonMarine order number: PM3593655-MJK
The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated
