ボルボペンタ船舶用ディーゼルエンジンオーバーホールキット AQD32 MD32 829532 875416 875439 875334 875330
High-quality marine engine spare parts.
Engine rebuilt kit for Volvo Penta
Suitable for the following engines:
- AQD32A MD32A

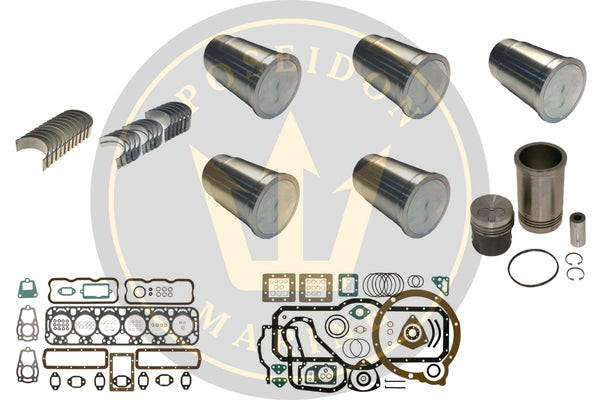

The following parts are included in this kit:
- Cylinder liner kit: 829532 (6)
- Cylinder liner o-ring kit
- De-carb kit: 875416 (1)
- Oil pan gasket set: 875439 (1)
- Main bearing kit: 875334 (1) (1 kit for the whole engine) *
- Rod bearing kit: 875330 (1) (1 kit for the whole engine) *
Undersized bearings
- *Upon inquiry, the rod bearing kit can be supplied undersize (875331, 875332) (0.30/0.50)
- Same as above, the main bearing kit can be supplied (875335, 875336) (0.30/0.50)
Engine overhaul kit Volvo Penta marine diesel AQD32 MD32 829532 875416 875439 875334 875330
Assembly time: 4 days.
The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
Workshop manual for Volvo Penta AQD32A and MD32A For further technical details, you may download this workshop manual:
Frequently Asked Questions About Engine overhaul kit Volvo Penta marine diesel AQD32 MD32:
-
What is the tightening sequence and torque for the cylinder head on Volvo Penta AQD32A and MD32A?
Tighten the cylinder head bolts in two stages of 35 Nm (25 lbf.ft), followed by 70 Nm (50 lbf.ft.).
-
When should the cylinder head bolts be replaced on Volvo Penta AQD32A and MD32A?
The cylinder head bolts should be replaced when there are signs of elongation, or cannot be specified if it is already elongated, by checking the "waist" of the bolt. In order to replace all the cylinder head bolts, the following references should be ordered: 840758, 818050, 818048. At the moment, they are not available in our store.
-
What is the tightening torque for the main bearings and the big-end bearings on a Volvo Penta AQD32A and MD32A?
The tightening torque of the main bearings is: 100 Nm (72 lbf.ft.)
The tightening torque of the big-end bearings is: 60 Nm (43 lbf.ft.) -
Is it possible to supply oversize bearings for the “Engine overhaul kit Volvo Penta marine diesel AQD32 MD32 829532 875416 875439 875334 875330”?
Yes, Poseidon Marine keeps in stock a few series of repair bearings:
Big-end bearings: 875331, 875332 (0.30mm / 0.50mm)
Main bearings: 875335, 875336 (0.30mm / 0.50mm)
Upon request, we can provide oversize bearings with this overhaul kit.
