Water pump repair kit for Volvo Penta 2001 2002 2003 RO: 21951414 875756

  • €89,90
  • Save €19,10
Tax included. Shipping calculated at checkout.


High-quality marine engine spare parts from Sweden.

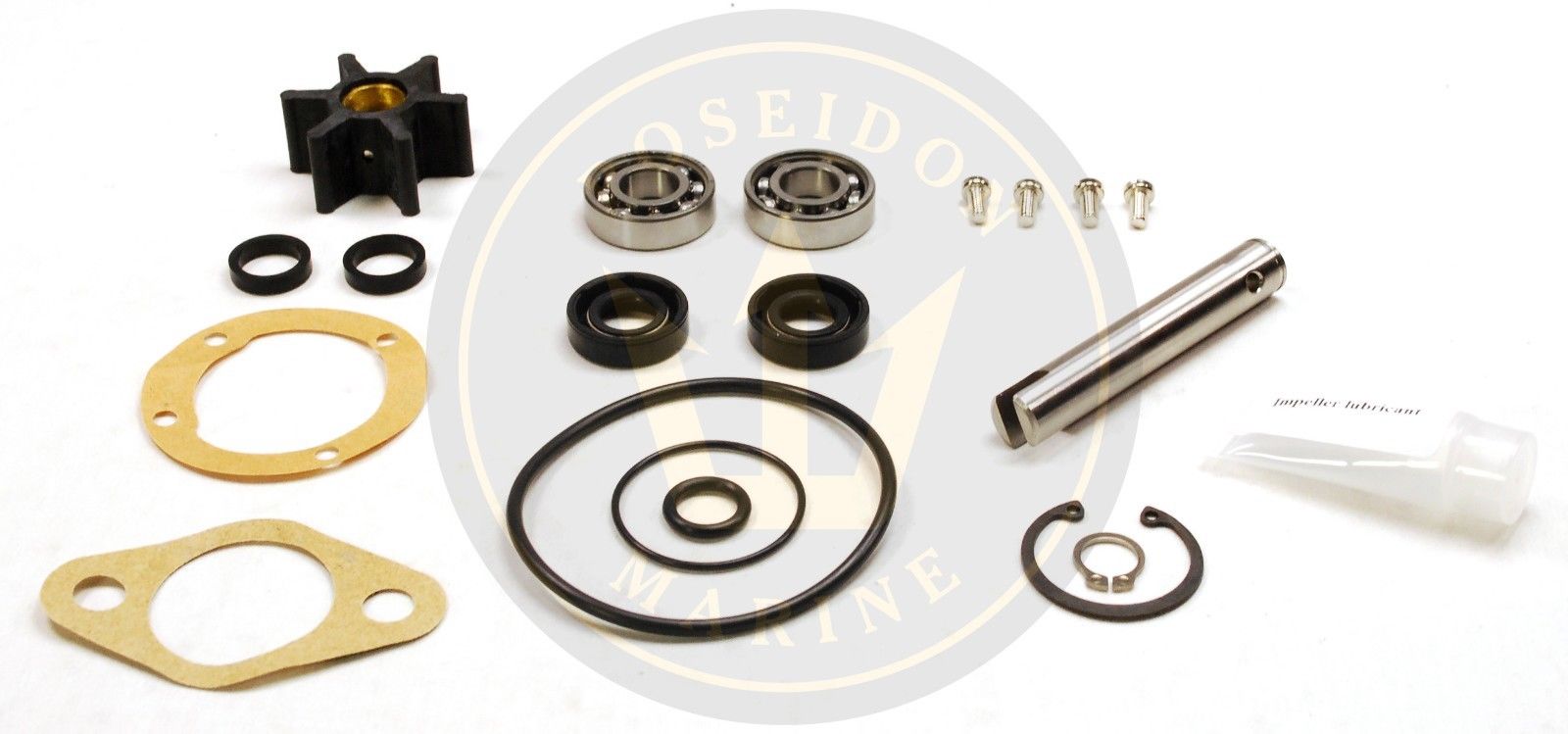

Major repair kit consists of:


  • Impeller kit 3586496 21951342 with gasket and pin.
  • Pump shaft, precision machined, made of 316 S.S. RO: 840773
  • Bolt kit S.S. RO: 21951302
  • Seals S.S. spring RO: 833996
  • Bearings RO: 181717
  • Snapring, shaft RO: 914446
  • Snapring, bearing retainer RO: 914515
  • O-ring shaft RO: 925055
  • O-ring pump to engine RO: 925093
  • Grommets pump to cooling pipe RO: 829714

DI:12.00 mm
DE:39.60 mm
H:19.20 mm
6 blades, bronze hub


Will only repair late design pumps 840557 using ball bearing found in the following Volvo Penta diesel engines :


  • 2001 2001AG 2001B 2001BG
  • 2002 2002AG 2002B 2002BG
  • 2003 2003AG 2003B 2003BG


Will not fit turbo engines with larger splined shaft.

The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
