PoseidonMarine® Circulation pump repair kit Volvo Penta AQ165 AQ170 831742 831720
High-quality marine engine spare parts.
PoseidonMarine® circulation water pump repair kit for Volvo Penta B30:
- AQ165A BB165A
- AQ170A AQ170B AQ170C BB170A BB170B BB170C
Compatible pumps: Suitable for all B30 engines equipped with the 831742 pump, casting number 831021.

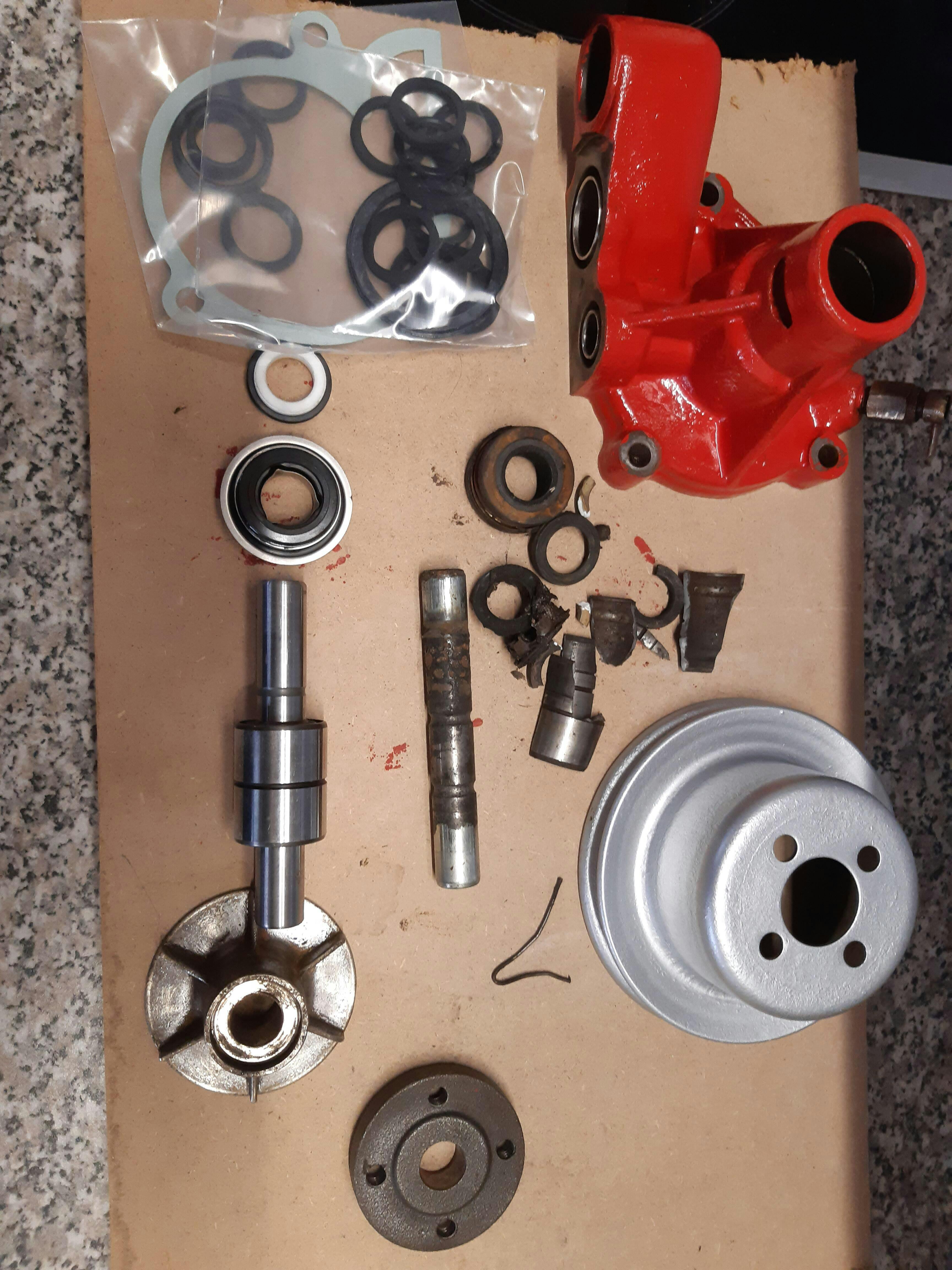

This repair kit consists of the following parts:
- Sealing ring: 460839
- Seat, sealing ring: 421306
- Bearing, shaft assy: 831720
- Circulation pump gasket set:
- Gasket, water pump
- Sealing rings
- Full grommet set for the cooling system:
- Thermostat seal, water pipe seals.
Quality Assurance: Quality is synonymous with PoseidonMarine, and we are committed to ensuring that the bearings included in this kit are far from substandard imitations. We exclusively utilize high-quality bearings recognized by the World Bearing Association (WBA), such as KOYO, SKF, NACHI, NTN etc. This meticulous selection demonstrates our respect for your valuable time, which you will dedicate to repairing this pump. By choosing our products, you can rest assured that your investment will yield long-lasting results, minimizing the need for frequent repairs.
This PoseidonMarine® part is warranted to be free from defects in materials or workmanship under normal use and service.
PoseidonMarine® Circulation pump repair kit Volvo Penta AQ165 AQ170 831742 831720
This product replaces the following manufacturer's part nr:
- Volvo Penta: -
- Orbitrade: -
- Recmar: -
- PoseidonMarine order number: PM831742-RPR
The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
Frequently asked questions about boat parts:
-
What is the process to disassemble the Volvo Penta circulation pump 831742?

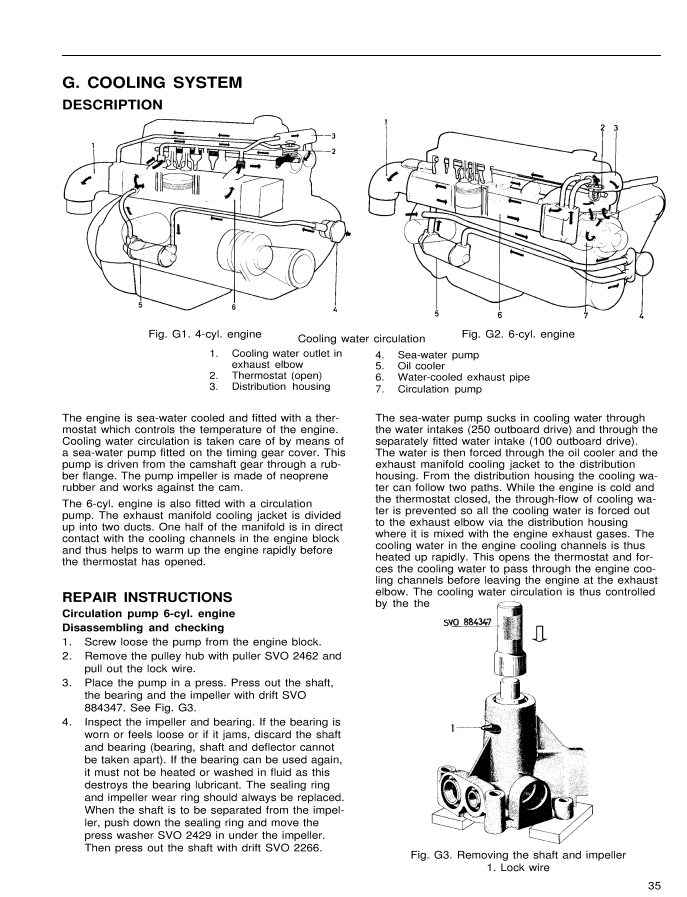

First of all, you need to remove the screws keeping the pump on the engine block. Using a puller, remove the pulley of the pump. As soon as you remove the locking wire of the bearing and shaft assembly, you can then place the pump on a vise to press out the shaft assembly. The impeller can then be pressed out from the shaft. The following scheme depicts the proper way the pump needs to be placed in order to be torn apart.
-

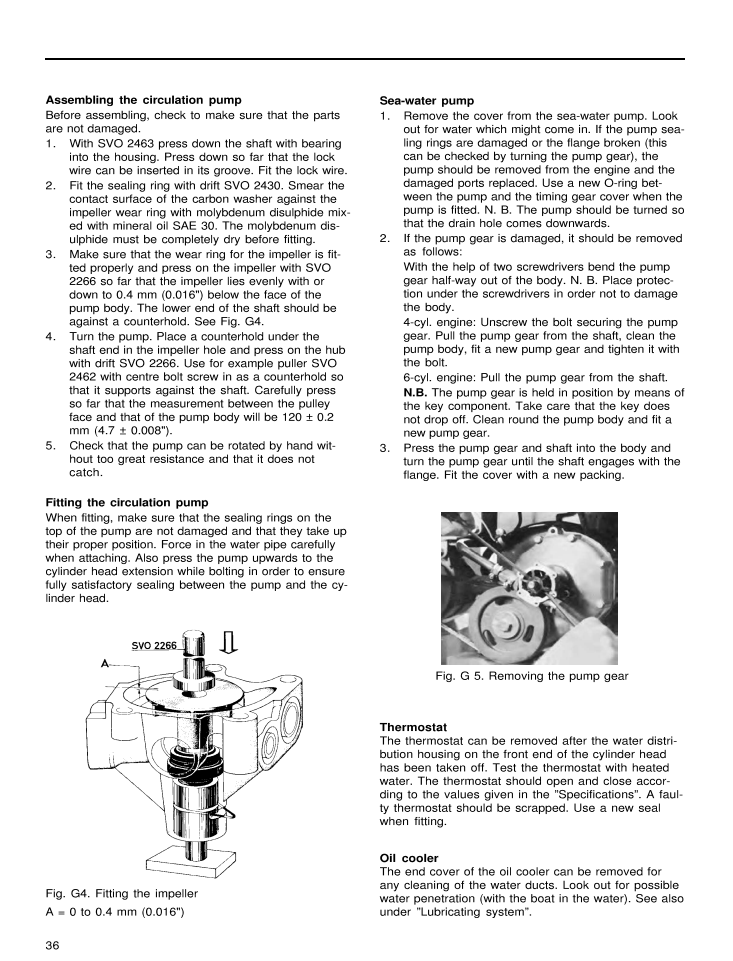

How to assemble a Volvo Penta AQ165 AQ170 water pump 831742?
The assembly process is technically the reverse process of the dismantling.
(1) With the pump placed upside down, press firmly the bearing and shaft assembly until the bearing slotting is aligned with the housing’s locking wire notch, then fit the wire.
(2) Apply Hylomar Blue or any similar glue around the mechanical seal and press it into the housing. Smear the contact surface of the carbon washer against the impeller wear ring with molybdenum disulfide (MoS2) mixed with mineral oil SAE 30. The molybdenum disulfide must be completely dry before fitting.
(3) Make sure that the wear ring is fitted properly onto the impeller, and then press the impeller until it lies evenly with the pump’s surface, or up to 0.4mm below the face of the pump’s body. During that process, the lower end of the shaft should be against a counterhold, as per the figure.
(4) Turn the pump the other way around. Place a counterhold under the shaft end in the impeller hole and press on the hub. The distance between the pulley’s face and the pump’s body should be adjusted to 120mm.
(5) Before mounting the pump, make sure that the pump can be rotated without great resistance.
