Water pump impeller for Volvo Penta OMC Cobra RO: 3862281 21213660 21951346 09-1027B

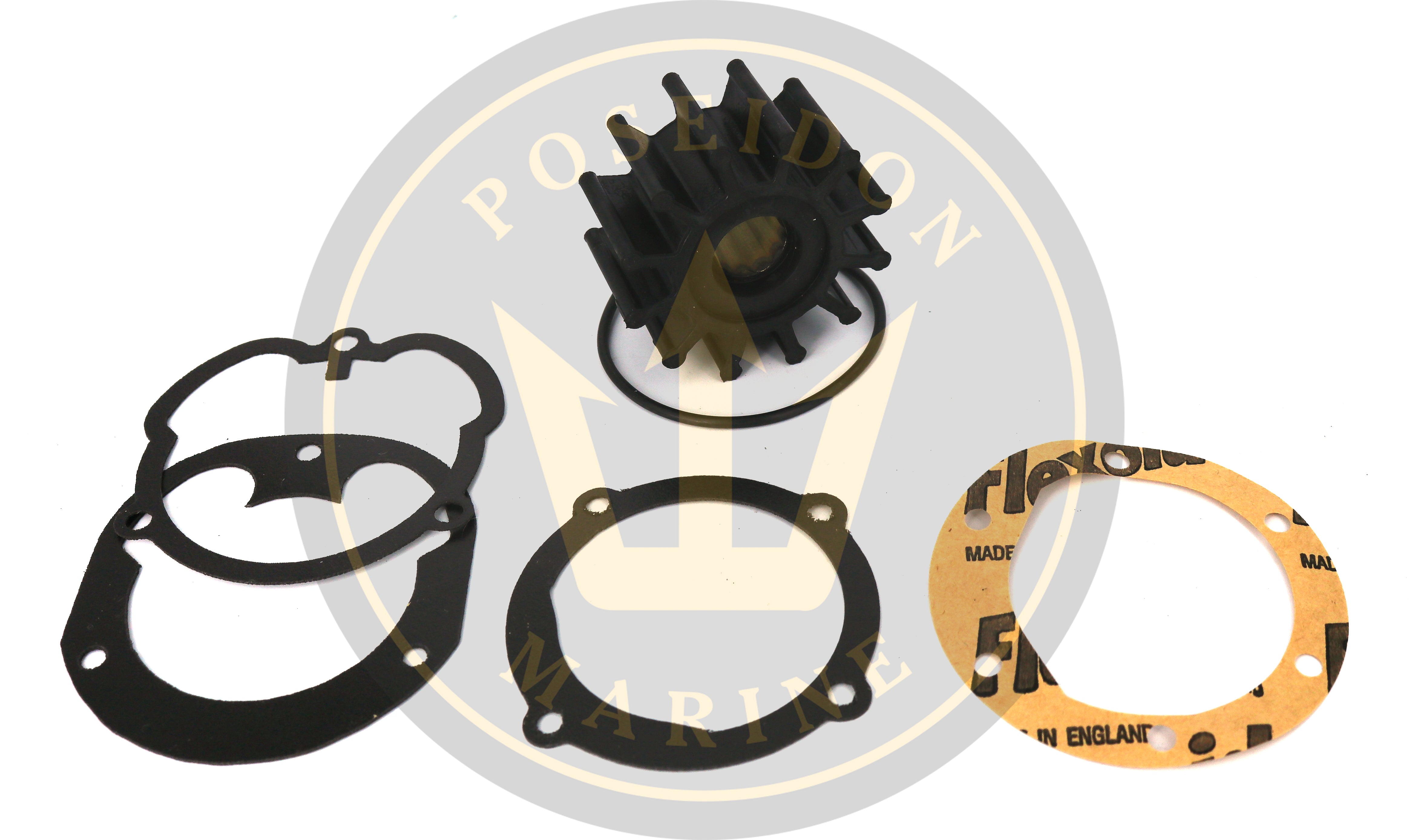

Replacement impeller kit complete with gaskets, o-ring and a portion of impeller lubricant as shown.

Replaces the active and superseded Volvo Penta part numbers listed below

825940 875811 876243 877195 877199 877200 3850107 3855546 3856039 3858256 3862281 3862567 21213660 21951348 (latest active) Compatible with the following Volvo Penta engines

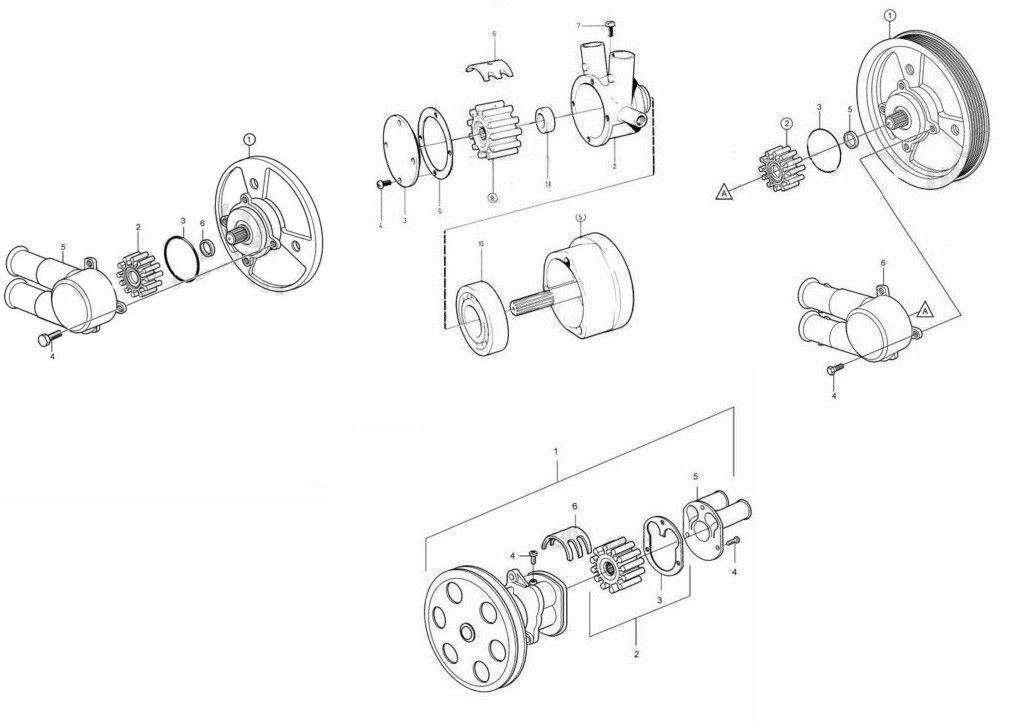

*Some of the mentioned models use more than one type, so please advice the schematics in pictures and the dimensions provided here*

D2-55, D2-75, 3,0, 4,3, 5,7, 7,4, 8,1, 430, 431, 432, 434 500, 501, 570, 571, 572, V-6, V-8, D21, D22, 2003T

Other references

• Johnson Pump : 09-1027B
• Sole Diesel : 35111008
• Onan : 132-0162
• Yanmar : 129470-42532 129470-42530

*

DI:14.30 mm
DE:57.00 mm
H:31.60 mm
