Sea water pump repair kit for Volvo Penta D4 pump 3584062 with 3583609 3588475

  • €99,90
  • Save €20,00
Tax included. Shipping calculated at checkout.

High-quality marine engine spare parts.

Water pump repair kit for Volvo Penta D4.

For pump with hose connection on the cover.

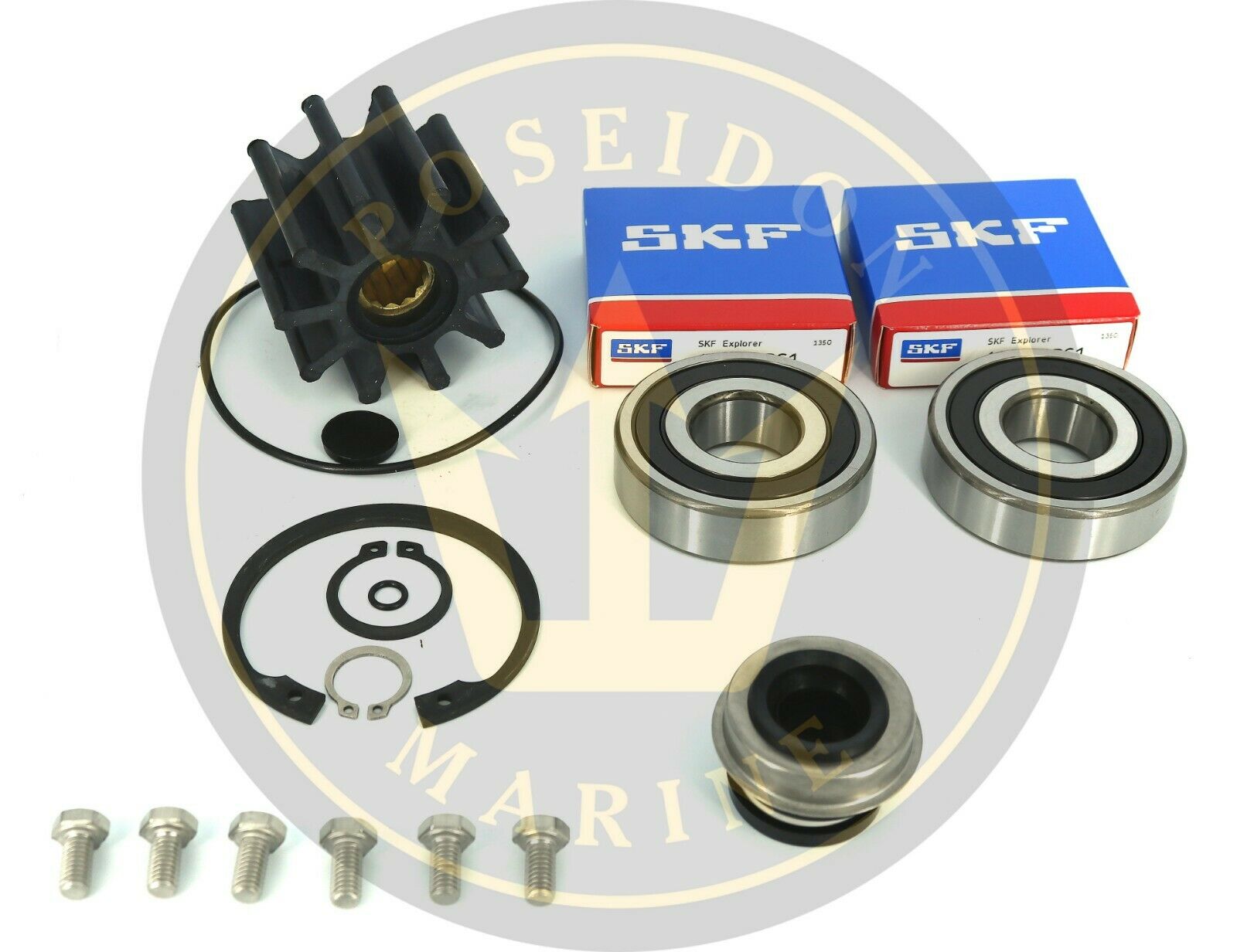

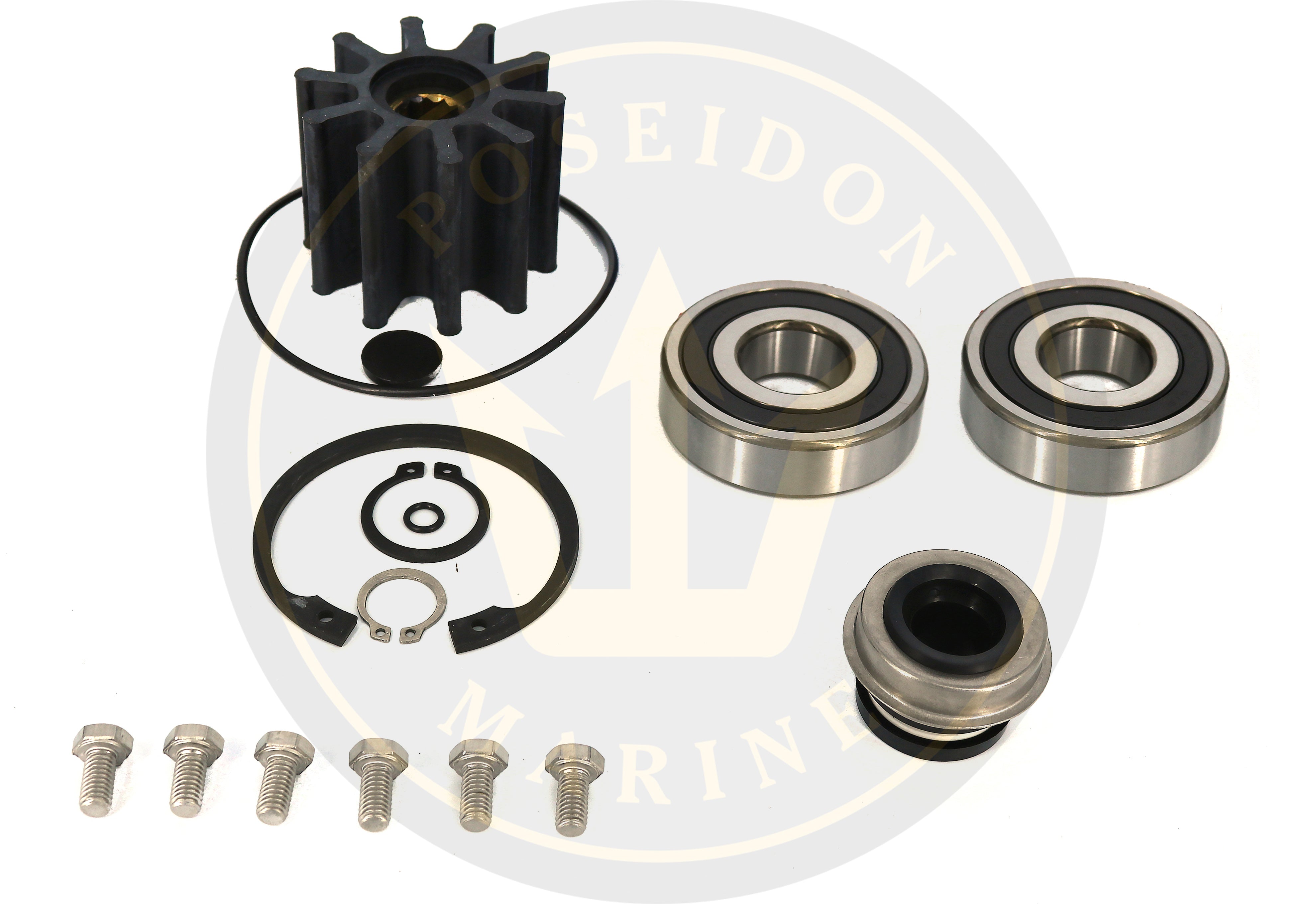

Major repair kit consists of:

  • Impeller kit RO: 3588475
  • Bearings (current batch SKF®)
  • Mech. seal 3583609
  • Bolt kit S.S.
  • All snaprings
  • Cooling fin o-ring


DI:14.29 mm
DE:65.00 mm
H:50.10 mm
10 blades, bronze hub

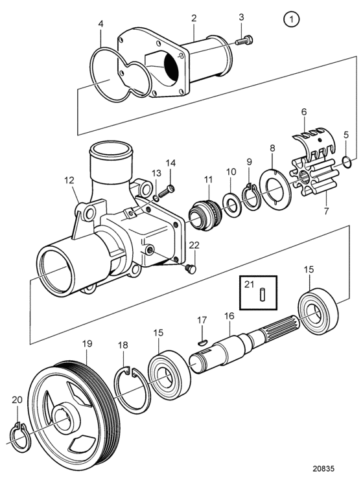

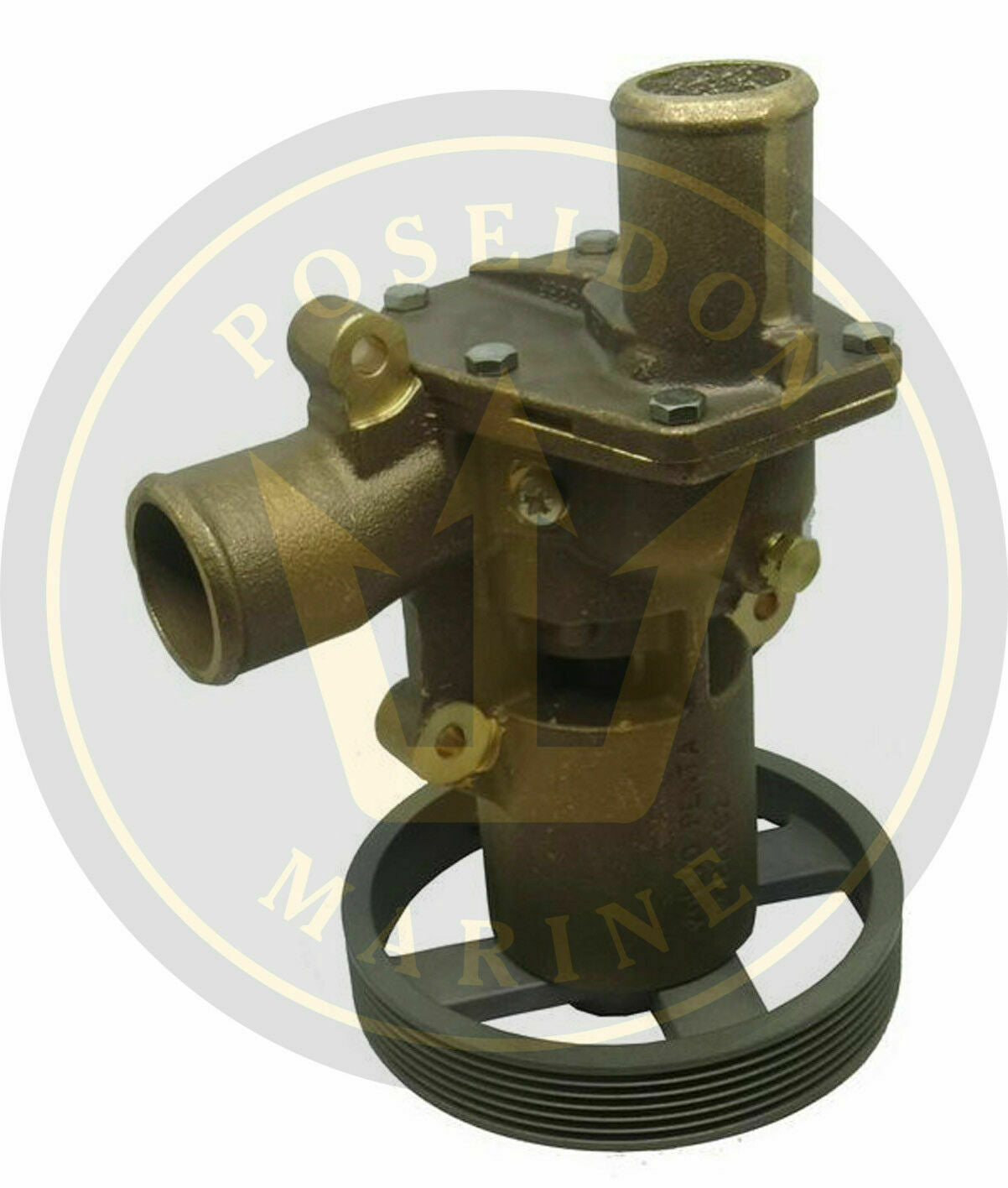

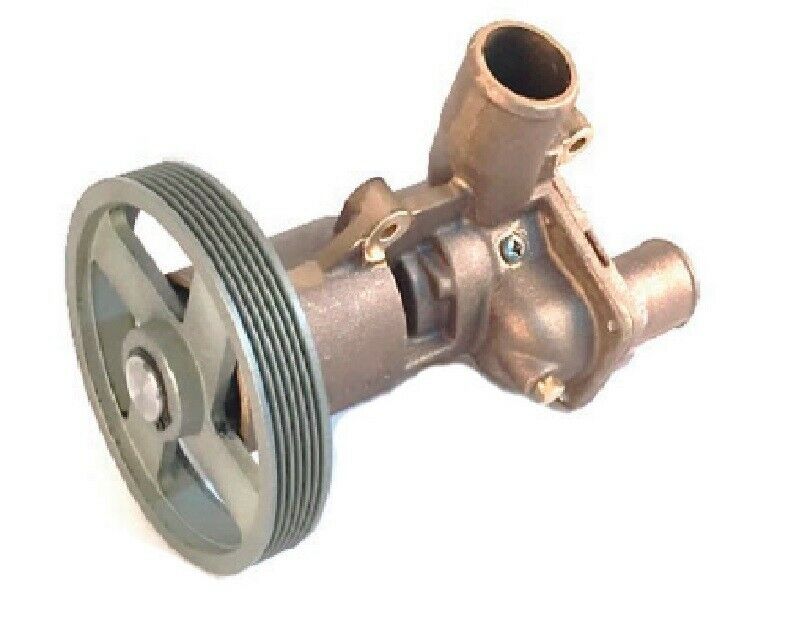

This kit will fit all Volvo Penta D4 equipped with seawater pump 3584062. Mind the scheme and dimensions of impeller provided.


  • D4-180I-B, D4-180I-C, D4-180I-D, D4-180I-E, D4-180I-F
  • D4-210A-A, D4-210A-B, D4-210I-A, D4-210I-B
  • D4-225A-C, D4-225A-D, D4-225I-B, D4-225I-C, D4-225I-D, D4-225I-E, D4-225I-F
  • D4-260A-A, D4-260A-B, D4-260A-C, D4-260A-D, D4-260D-B, D4-260D-C, D4-260D-D, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F
  • D4-300A-A, D4-300A-C, D4-300A-D, D4-300D-A, D4-300D-C, D4-300D-D, D4-300I-A, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F

The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated
