Raw water pump repair for Volvo Penta V6 V8 for pumps 21214596 21212799 21212798
Water pump repair kit for Volvo Penta
The repair kit consists of:
- Bearing
- Seal S.S. spring RO: 827247
- O-rings
- Snapring, bearing retainer
- Impeller (Only MAJOR SHORT OR TALL) (Short 877400 3862281 21213660 21951346 / Tall 21951354 3842786 21213664 21951352)
This kit will fit all Volvo Penta equipped with seawater pumps :
- 3812518 3812519 3812520 3812522 3812693 3812694 3812695 3812696 3812697 3812698 3857202 3857203 3858229 3858230 3860795 3861417 3862482 3862483 3862484 3862485 3862487 3862488 21212798 21212799 21212800 21212801 21214595 21214596 21214599 21214601 21255090 21427729 21427730

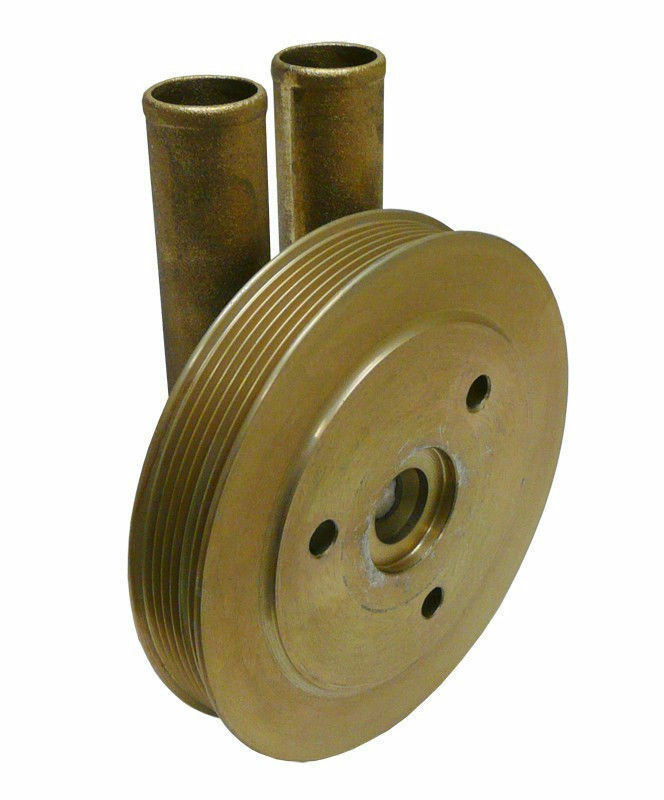

crank mounted as the one pictured, driven with serpentine belt.

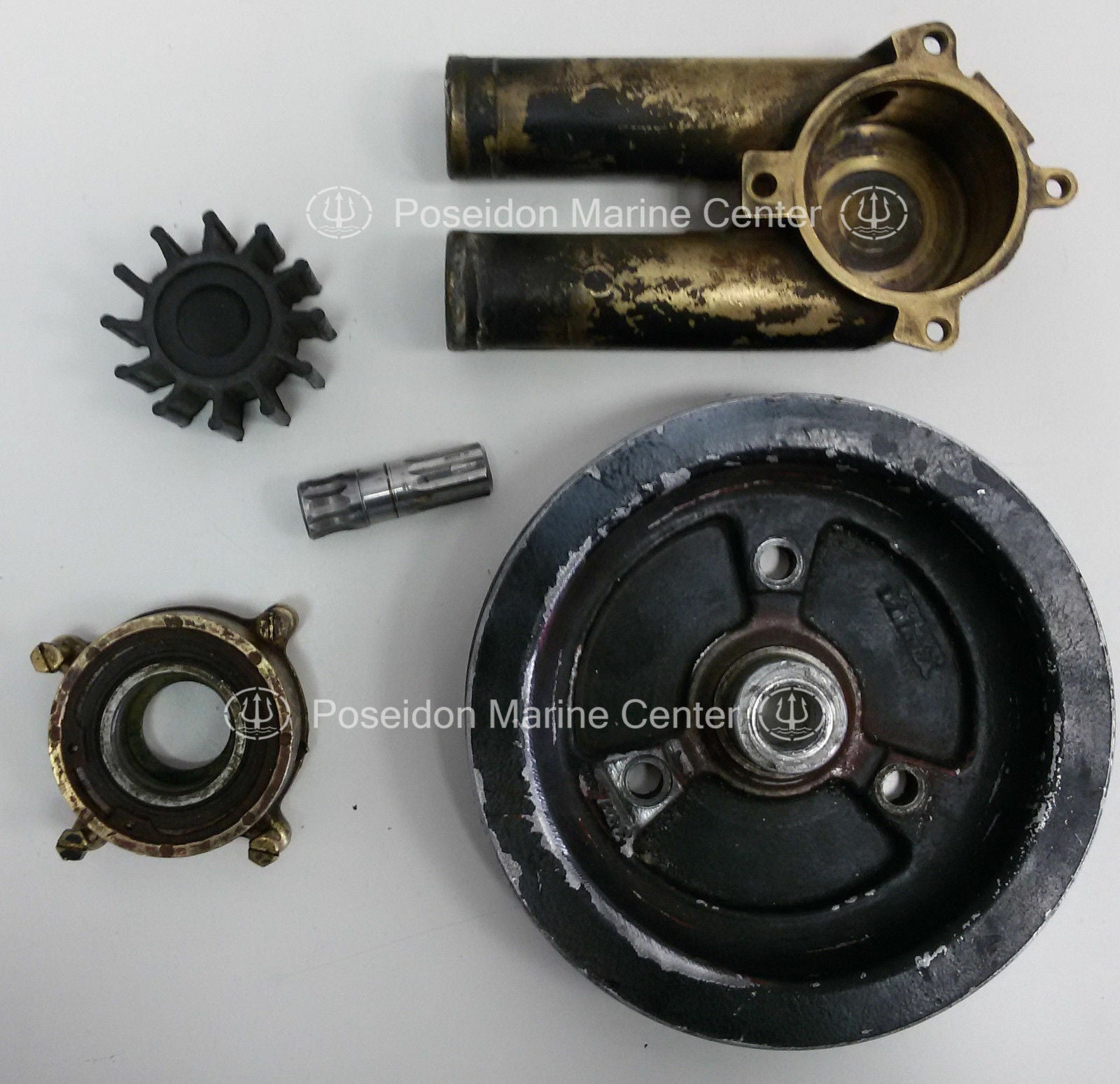

The used pump and the complete pump are illustrated only for guidance and are not for sale, nor included in the lot.
Customers who wish to purchase a complete repair kit, including the impeller shall choose between SHORT IMPELLER
(impeller height 31.60mm) Usually a pre-2005 engine
Pumps: 3812693 3812694 3812695 3812696 3812697 3812698 3857202 3857203 3858229 3858230 3860795 3861417 3862482 3862483 3862484 3862485 3862487 3862488 21214595 21214596 21214599 21214601 21427729 21427730
and TALL IMPELLER
(impeller height 48.20mm) Usually an engine assembled after 2005
Pumps: 3812518 3812519 3812520 3812522 21212798 21212799 21212800 21212801 21255090
The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated
