Recmar® Heat exchanger seal kit Volvo Penta AD31 TAMD31 AD41 TAMD31 860275 860276 22108
High-quality marine engine spare parts.
Recmar® heat exchanger (radiator) gasket kit for Volvo Penta marine diesel:
- AD31A, AD31B
- AQAD31A
- TAMD31A, TAMD31B, TMD31A, TMD31B
- AD41A, AD41B, AQAD41A, D41A, D41B
- TAMD41A, TAMD41B,TMD41A, TMD41B

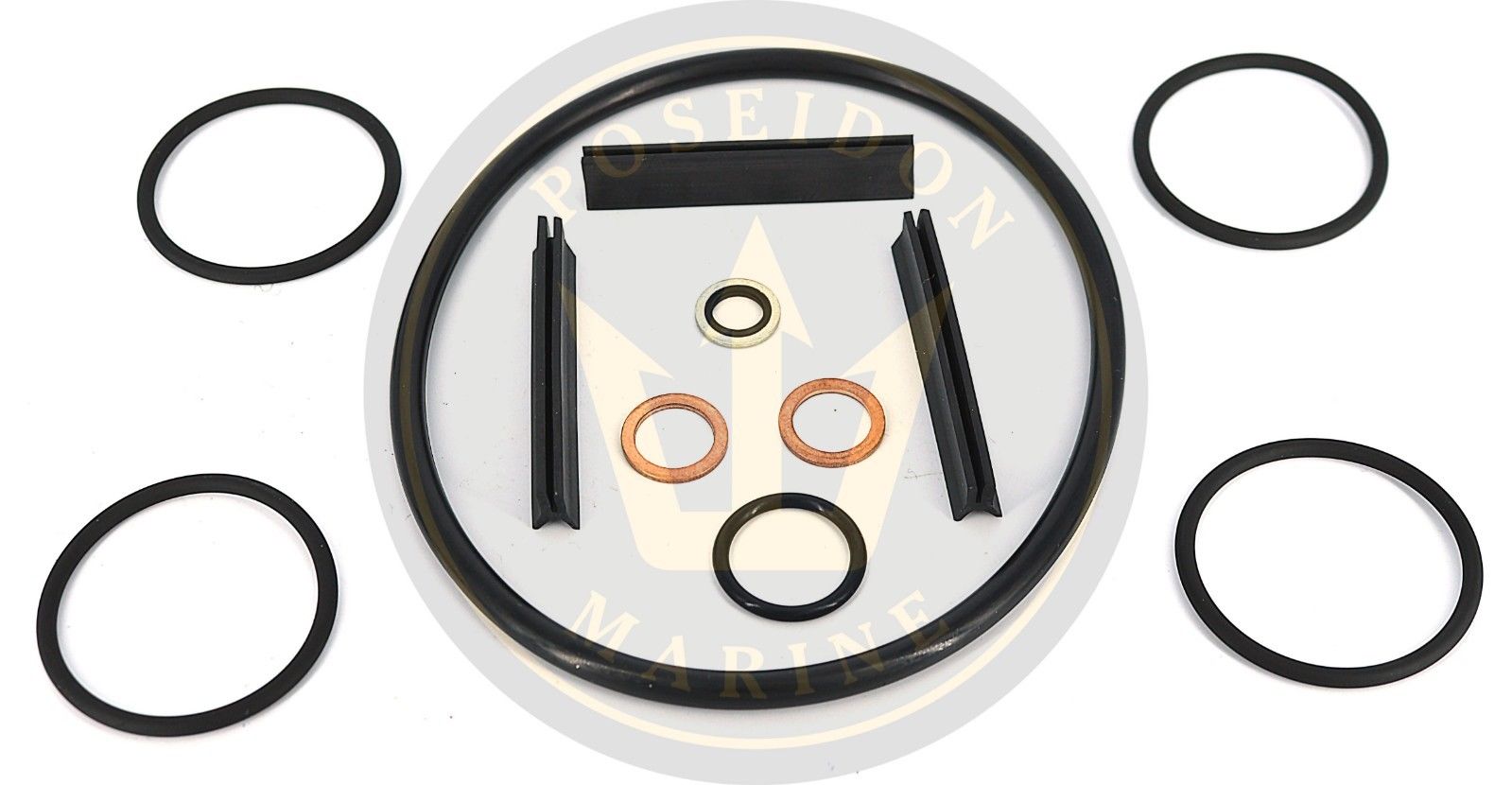

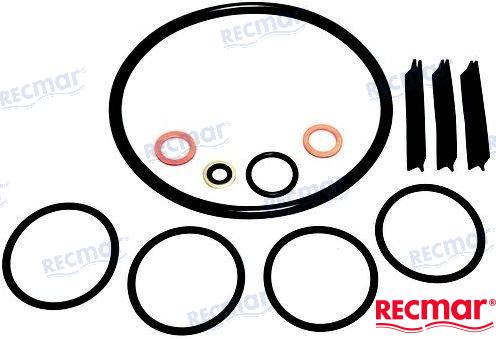

This Recmar® freshwater cooler (radiator) gasket kit is designed to include the necessary components for dismantling, descaling, cleaning, and reassembling your cooler. One o-ring with reference 925027, and three sealing strips 860127 are provided to reseal the covers onto the housing. The four o-rings with reference 968927 are used to renew the pipe connections. Two copper gaskets 11994 are placed on the air vent line, and one o-ring 958227 is placed on the anode plug. Lastly, a gasket 964106 is included to seal the main bolt on the cover. These are some popular heat exchanger units that can use this gasket kit: 860275, 860276. Your cooler is equipped with an anode; this is the ideal time to replace it; reference 838929 (1) is required.
Recmar® Heat exchanger seal kit Volvo Penta AD31 TAMD31 AD41 TAMD31 860275 860276 22108
This product replaces the following manufacturer's part nr:
- Volvo Penta: 925027 (1) 860127 (3) 968927 (4) 11994 (2) 958227 (1) 964106 (1)
- Orbitrade: ORB22108, 22108
- Crom: 122144
- Recmar order number: REC22108
The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
