Fuel pump for Perkins M50 M60 Volvo Penta MD22 RO: 3582500

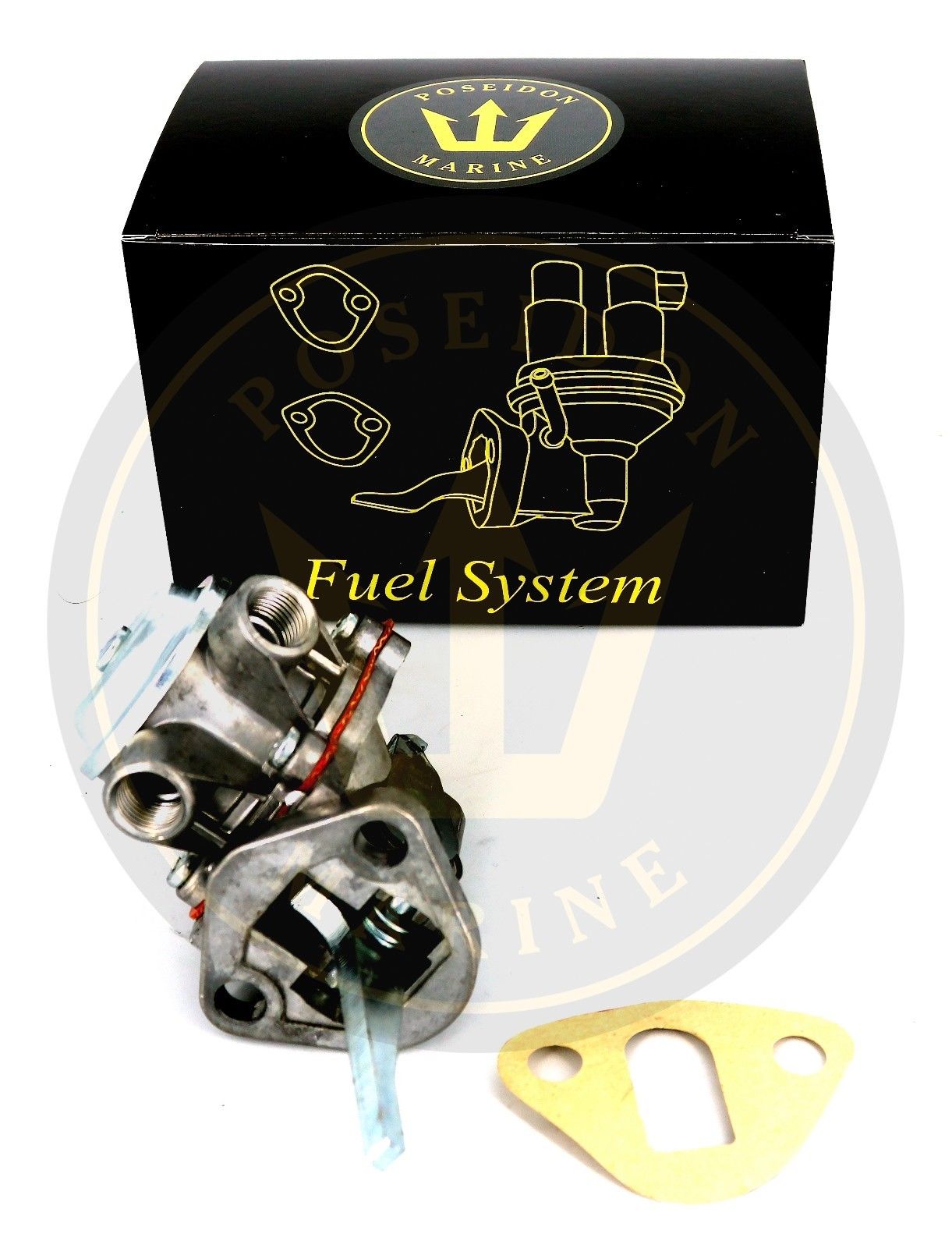

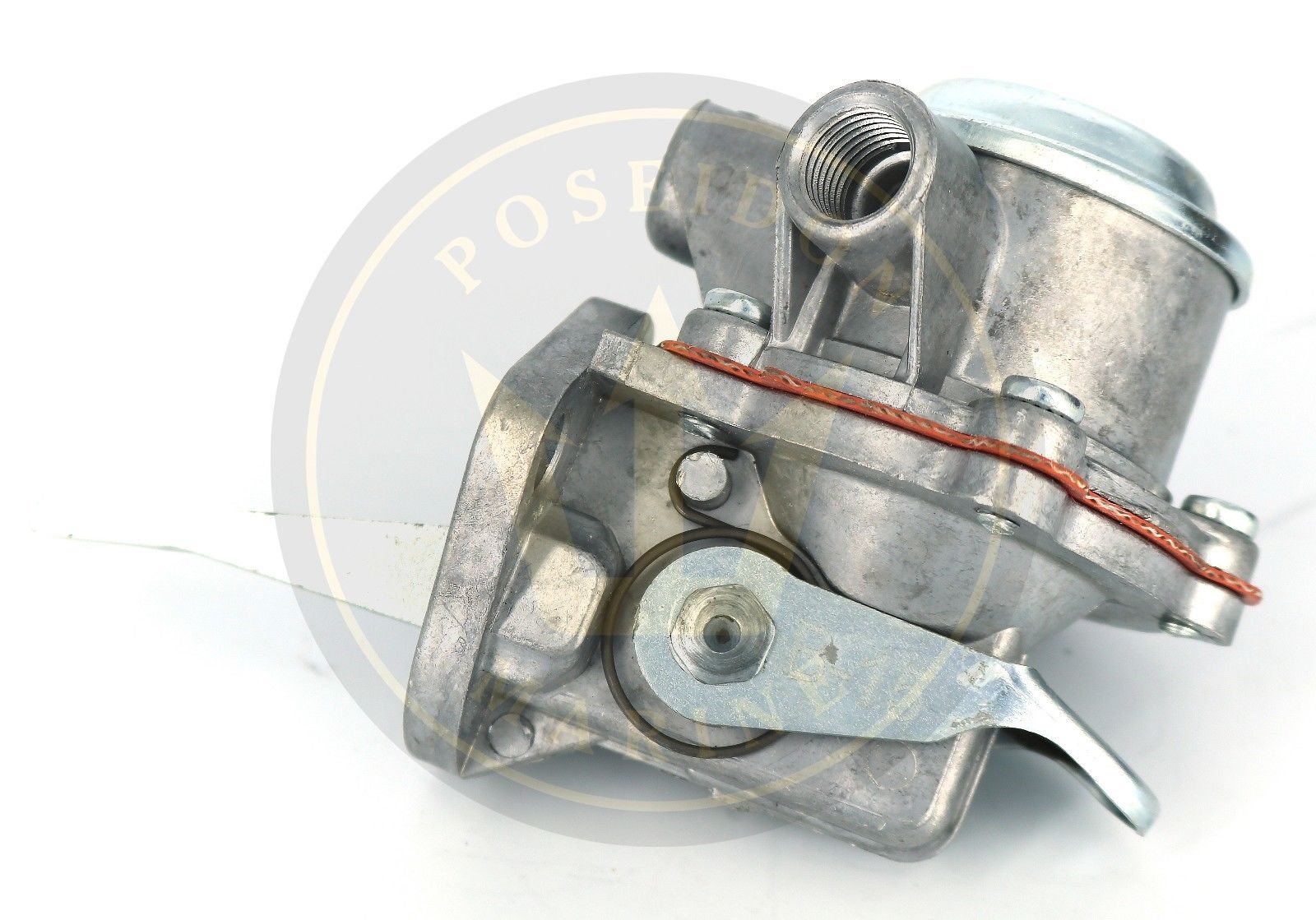

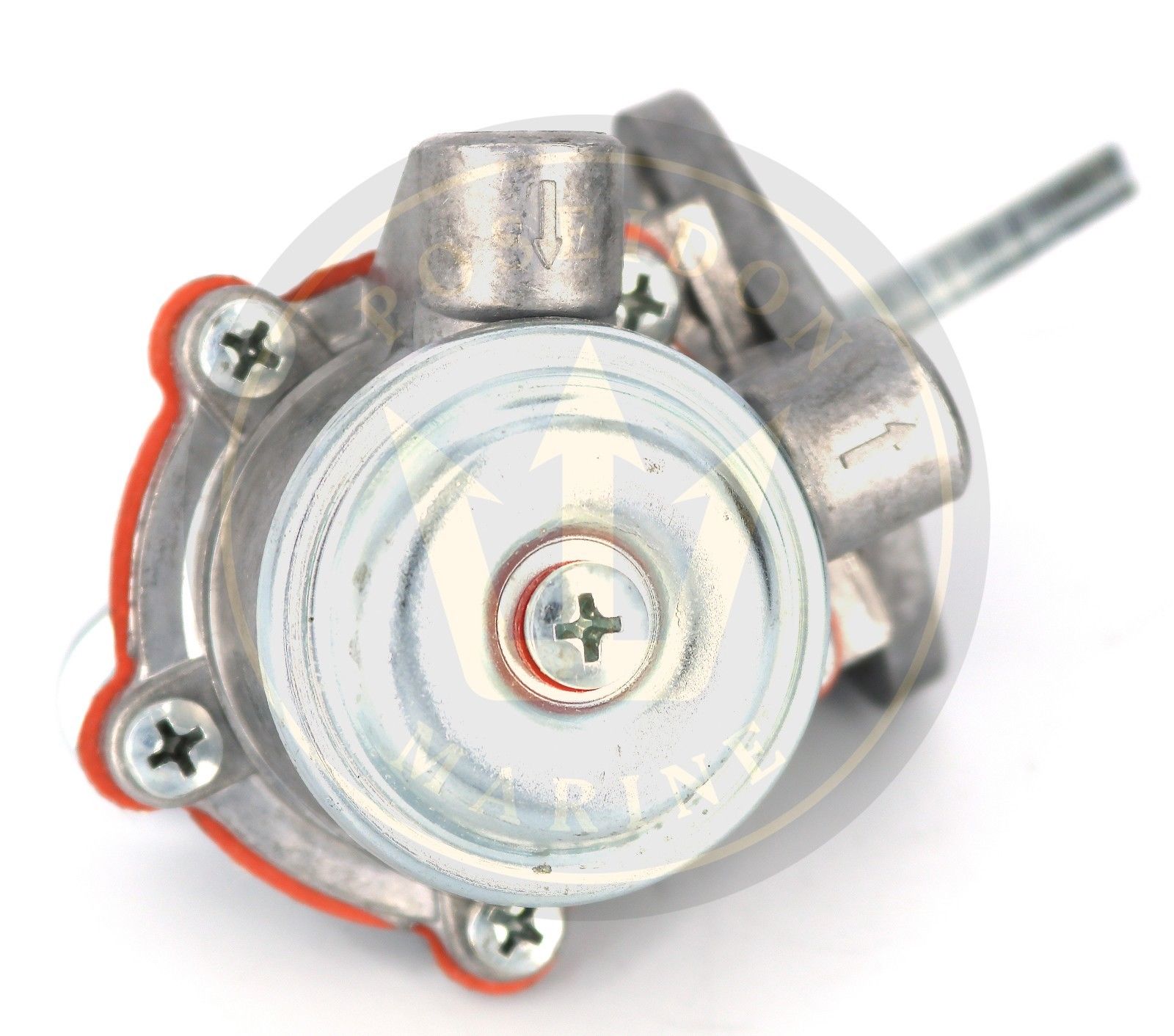

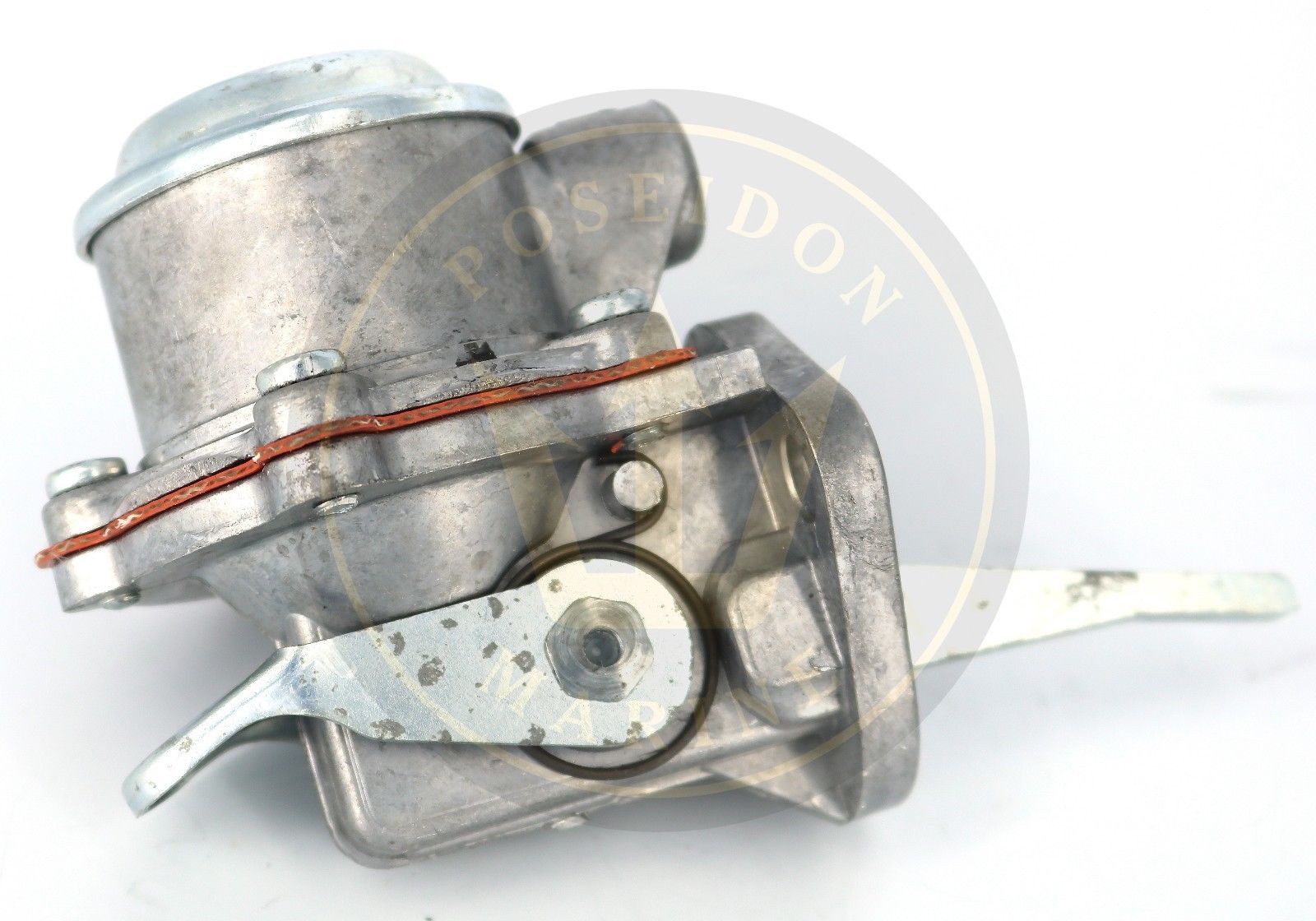

Poseidon Marine mechanical fuel pump assembly.
The lift pump draws fuel from the fuel tank, through various filters, then delivers the fuel to the injection pump. These pumps are either mechanically driven off an eccentric on the camshaft, or driven electrically. The diaphragm is pulled down by the action of the lever arm and then moves upwards by the action of the return spring.
When the diaphragm moves down, it sucks the outlet valve closed, and the inlet valve open. Because the surface of the fuel in the tank is open to atmospheric pressure, fuel is induced into the body of the pump. As the diaphragm returns upwards, it pushes the inlet valve closed, and opens the outlet valve, thus delivering fuel under pressure. Inspect your fuel pump regularly for leaking and replace according to manufacturer's maintenance schedule.
This fuel pump will fit only :
MD22A TMD22A MD22L-A
MD22P-B MD22L-B
TMD22-B TMD22P-C TAMD22P-B
Perkins
M50 M60
Inlet and Outlet 1/2" - 20 UNF
Reference to OEM part number : 3582500. Mounting gasket included.
1 Year or 100hours warranty, whichever is met first.
Use of contaminated fuel or old / wrong filter voids warranty.
