Fuel pump for Perkins 103-10 Volvo Penta D2-55 MD2010 2020 2030 2040 RO: 3580100

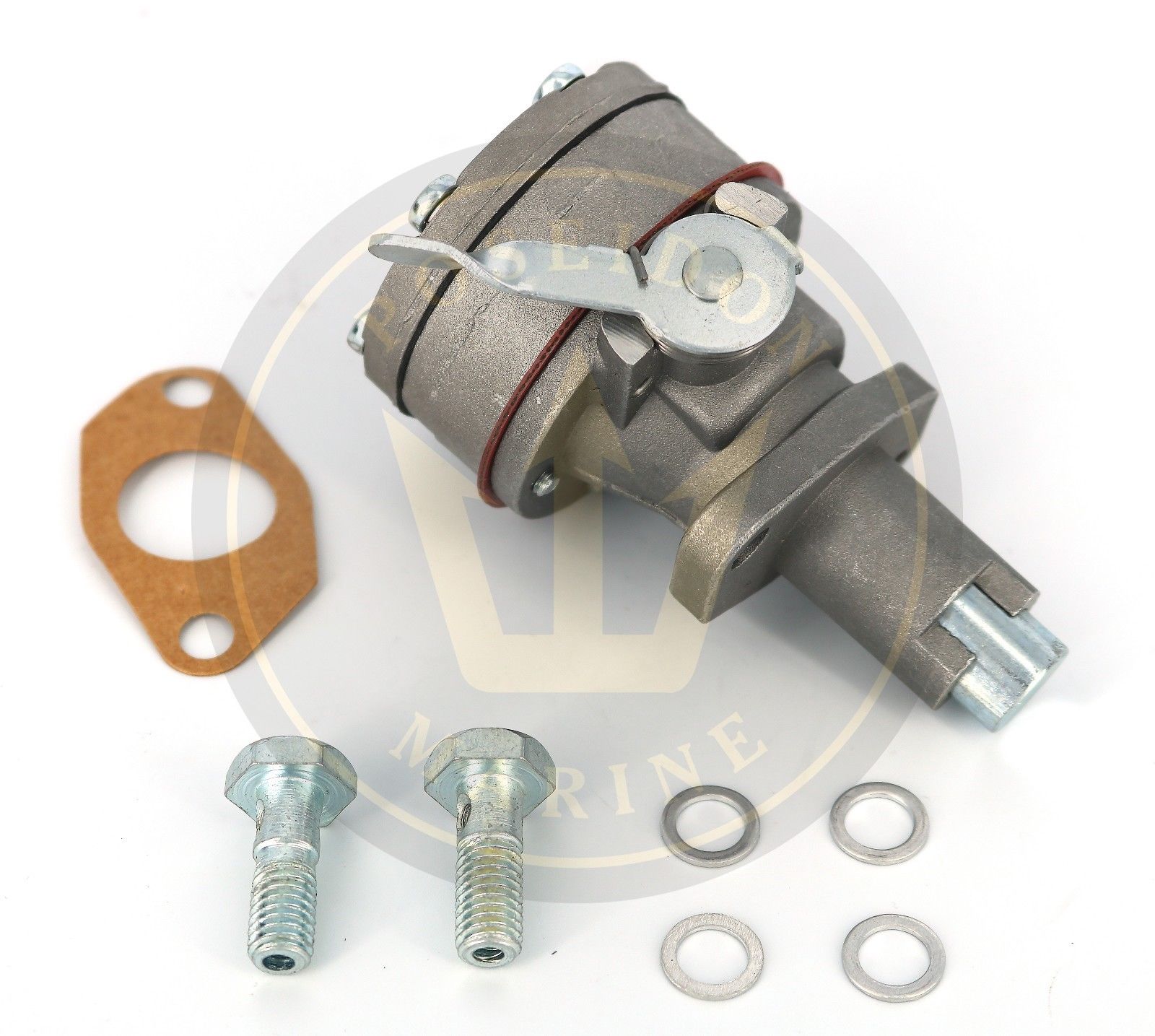

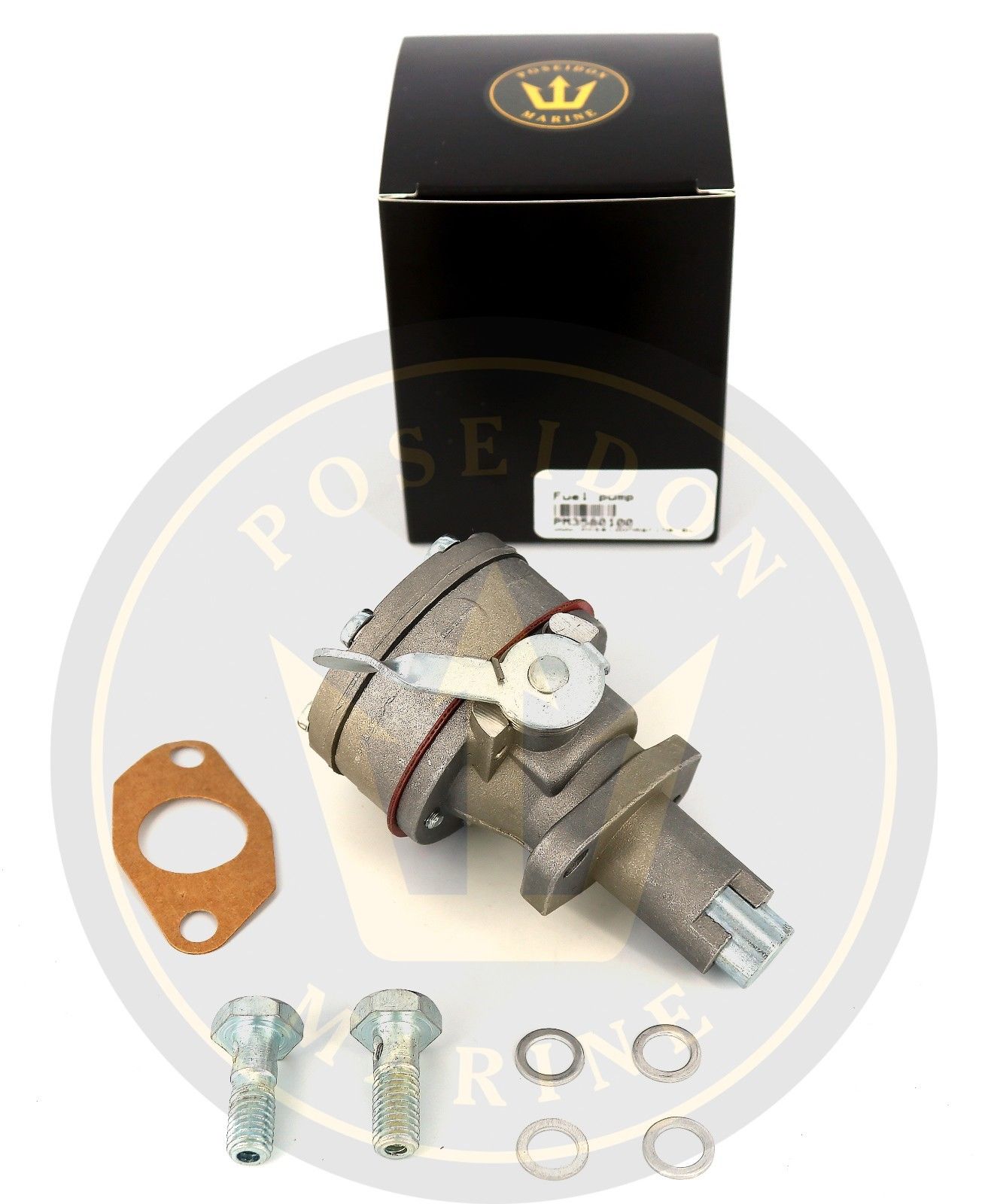

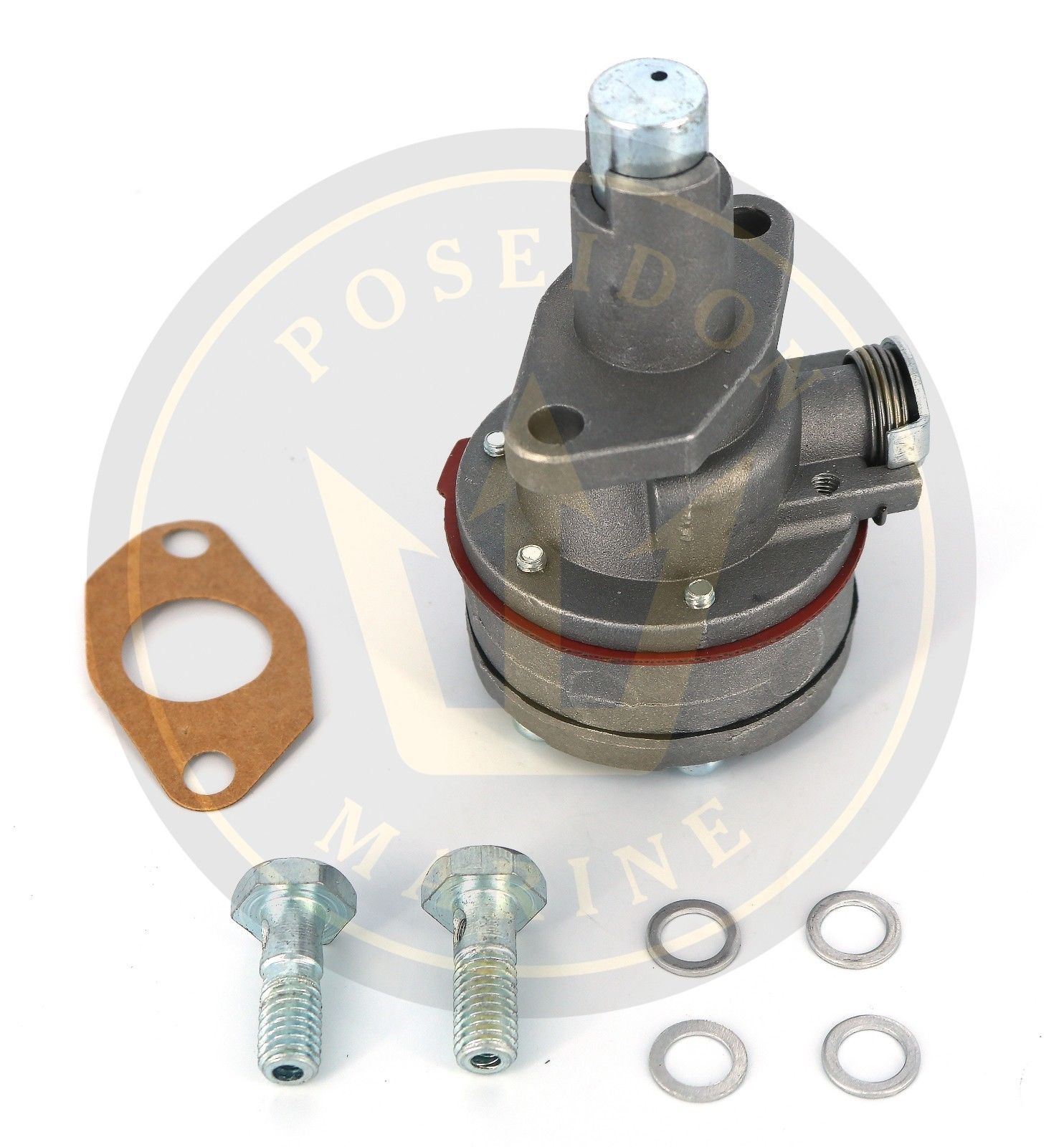

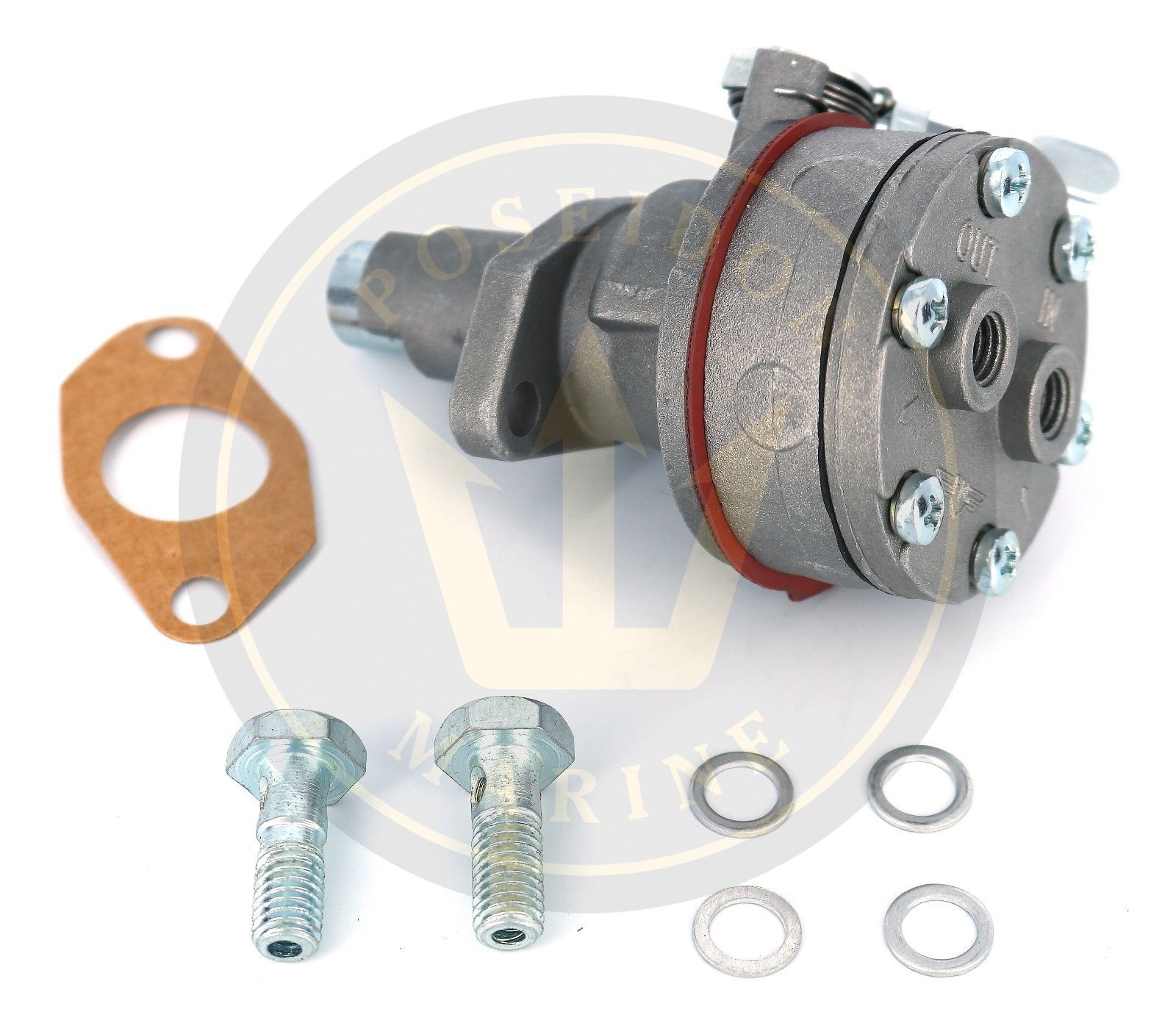

Poseidon Marine mechanical fuel pump assembly.
The lift pump draws fuel from the fuel tank, through various filters, then delivers the fuel to the injection pump. These pumps are either mechanically driven off an eccentric on the camshaft, or driven electrically. The diaphragm is pulled down by the action of the lever arm and then moves upwards by the action of the return spring.
When the diaphragm moves down, it sucks the outlet valve closed, and the inlet valve open. Because the surface of the fuel in the tank is open to atmospheric pressure, fuel is induced into the body of the pump. As the diaphragm returns upwards, it pushes the inlet valve closed, and opens the outlet valve, thus delivering fuel under pressure. Inspect your fuel pump regularly for leaking and replace according to manufacturer's maintenance schedule.
This fuel pump will fit only :
MD2010A MD2010B MD2010C MD2010D
MD2020A MD2020B MD2020C MD2020D
MD2030A MD2030B MD2030C MD2030D
MD2040A MD2040B MD2040C MD2040D
Inlet and Outlet M8X1.25
Reference to OEM part number : 3580100. Mounting gasket included.
1 Year or 100hours warranty, whichever is met first.
Use of contaminated fuel or old / wrong filter voids warranty.
