Crom® Head Gasket Set for Volvo Penta MD7A 876430 Head Gasket 3809167 1.3mm
High-quality marine engine spare parts from Sweden.

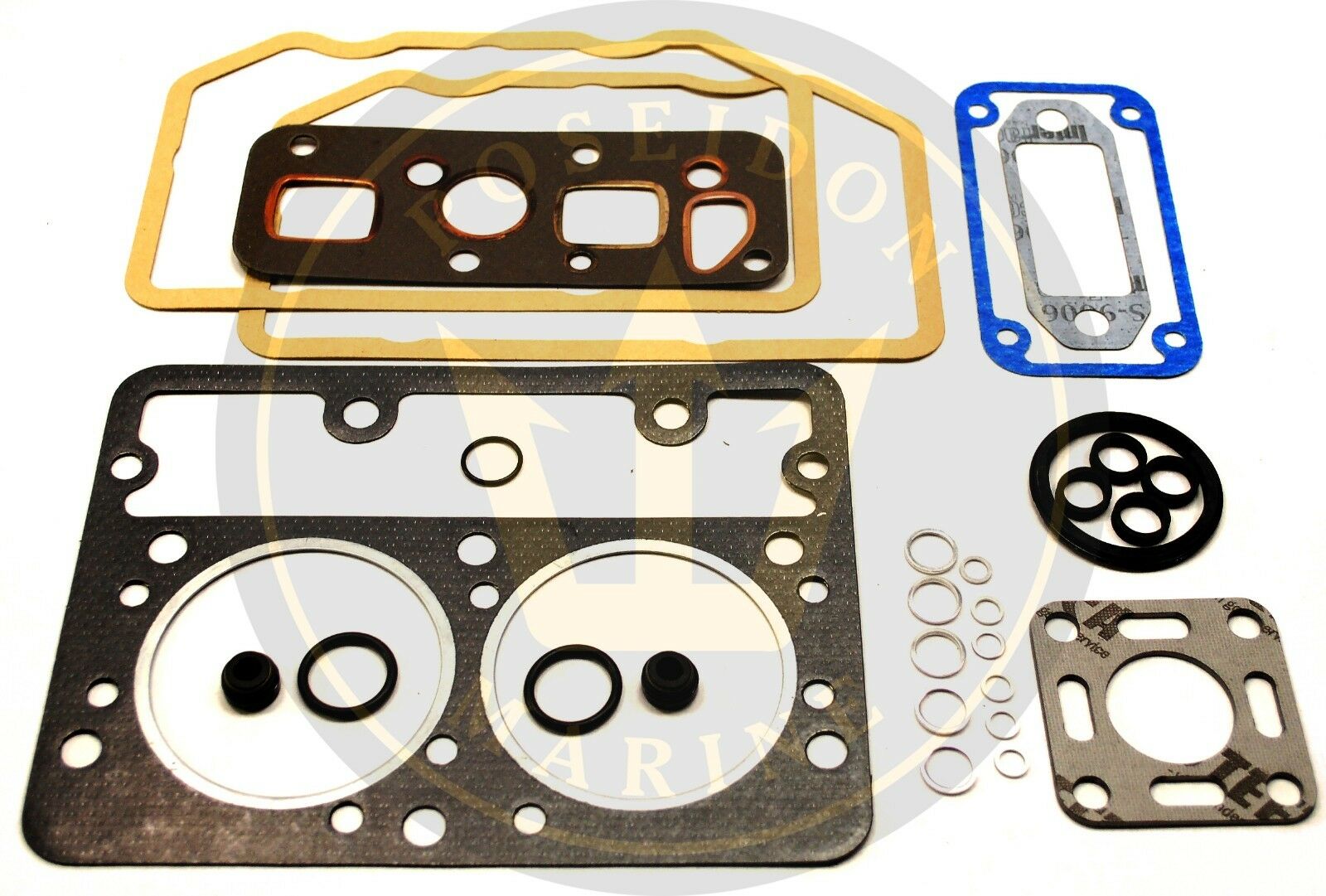

CromMarine® premium-quality decarbonizing gasket set for Volvo Penta:
- MD7A Up to Motor number -35144

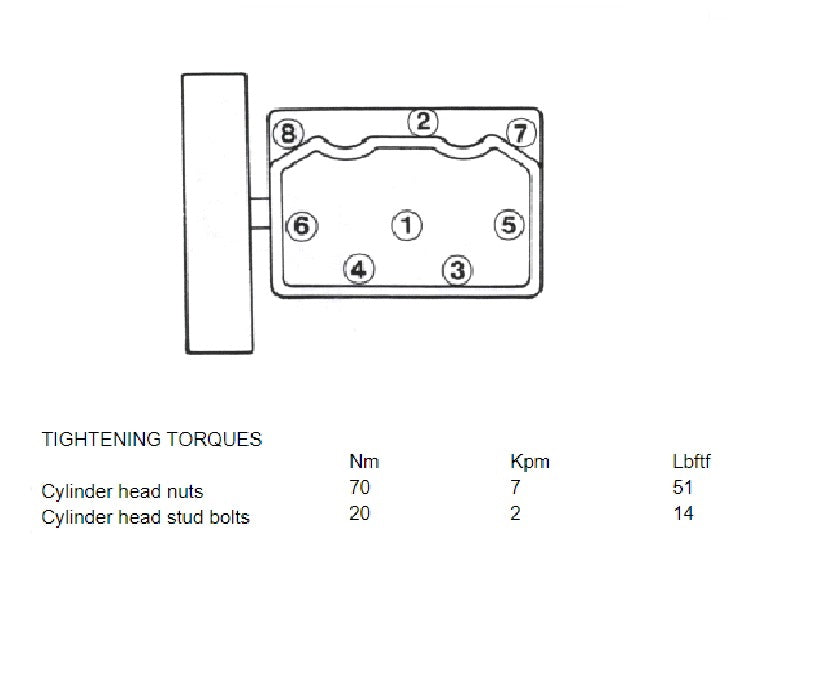

This head gasket kit, also known as a decarbonizing gasket kit, includes the head gasket with reference 3809167, 859136, 840270. This gasket kit has a 1.3mm thick head gasket and is suitable for MD7A engines, up to motor number 35144. The cylinder head nuts with reference 463643 and the studs with reference 3875690, should be replaced when needed[1], and tightening should be performed as per the sequence shown on the second picture.
Tightening torque settings:
- Cylinder head nuts: 70 Nm (51Lbft.)
- Cylinder head studs: 20 Nm (14Lbft.)
[1] The cylinder head bolts should be replaced when there are signs of elongation, or cannot be specified if it is already elongated, by checking the "waist" of the bolt.
This product replaces the following manufacturer's part nr:
- Volvo Penta: 876430, 875613
- Orbitrade: ORB21430, 21430
- Recmar: -
- Crom order number: 121046
The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
