Crom® Head Gasket Set Volvo Penta MD2040A MD2040B MD2040C MD2040D 3584202
High-quality marine engine spare parts from Sweden.

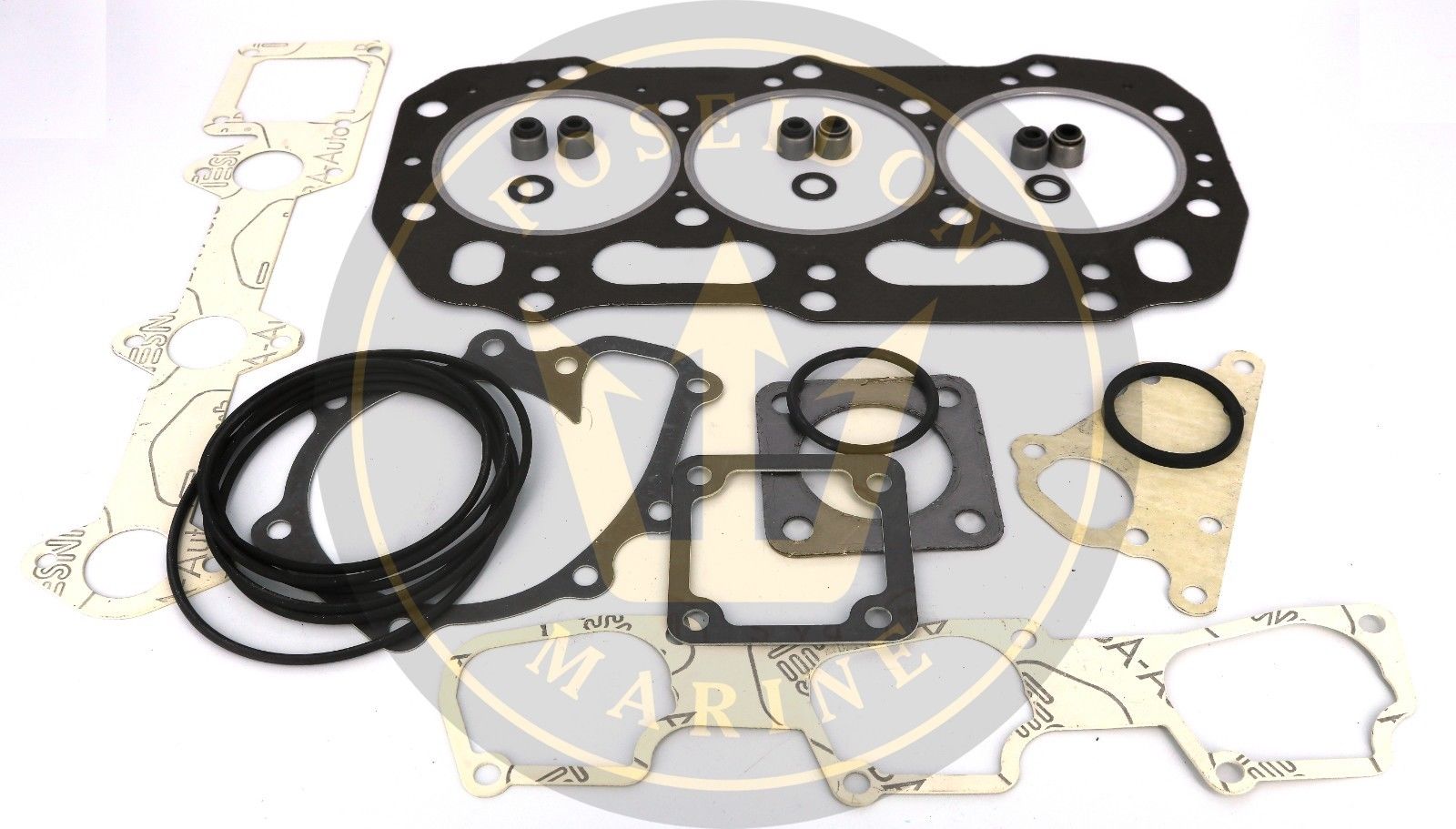

CromMarine® premium-quality decarbonizing gasket set for Volvo Penta:
- MD2040A
- MD2040B
- MD2040C
- MD2040D

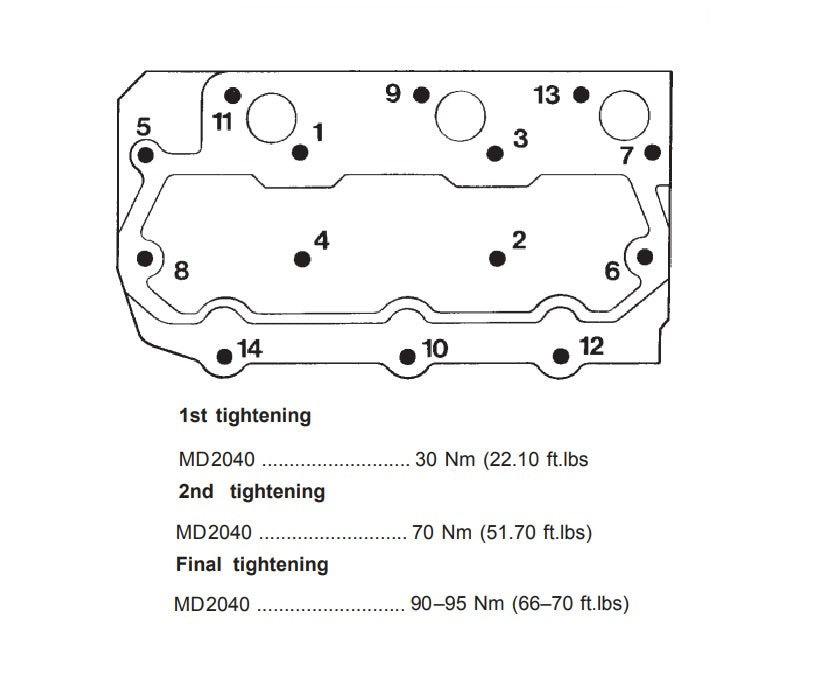

This head gasket kit, also known as a decarbonizing gasket kit, includes the head gasket with reference 3584202, 3580482. The cylinder head bolts with reference 3580483 and 3580484 should be replaced when needed[1], and tightening should be performed in three stages, following the attached diagram.
Tightening torque settings:
- 30 Nm (22.10 ft.lbs)
- 70 Nm (51.70 ft.lbs)
- 90–95 Nm (66–70 ft.lbs)
Kindly check the second picture that provides the necessary instructions, directly quoted from the Volvo Penta workshop manual.
[1] The cylinder head bolts should be replaced when there are signs of elongation, or cannot be specified if it is already elongated, by checking the "waist" of the bolt.
Crom® Head Gasket Set Volvo Penta MD2040A MD2040B MD2040C MD2040D 3584202
This product replaces the following manufacturer's part nr:
- Volvo Penta: -
- Orbitrade: ORB21761, 21761
- Recmar: REC21761
- Crom order number: 121054
The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
