Crom® Head Gasket Set for Volvo Penta AD30A AQAD30A MD30A TAMD30A TD30A TMD30A RO: 3582597 876453
High-quality marine engine spare parts from Sweden.
CromMarine® premium-quality decarbonizing gasket set for Volvo Penta:
- AD30A
- AQAD30A
- MD30A
- TAMD30A
- TD30A
- TMD30A
This head gasket kit, also known as a decarbonizing gasket kit, includes the head gasket with reference 859150, 1544109. The cylinder head bolts with reference 838775 should be replaced when needed[1], and tightening should be performed in three stages, following the attached diagram.
Tightening torque settings:
- 30 Nm
- 90 Nm
- 130 Nm

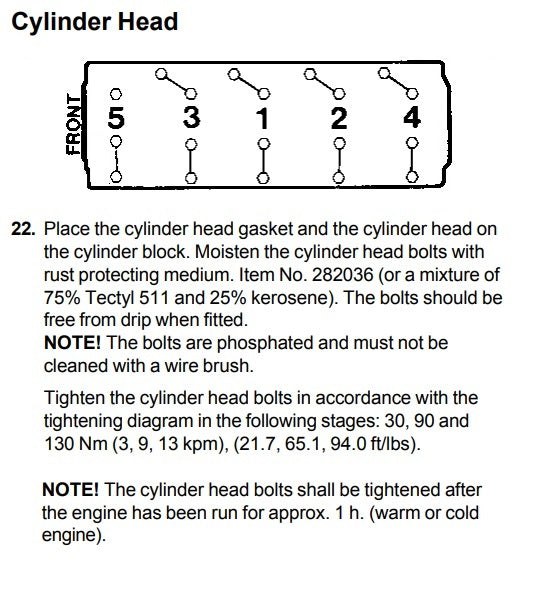

Kindly check the second picture that provides the necessary instructions, directly quoted from the Volvo Penta workshop manual.
[1] The cylinder head bolts should be replaced when there are signs of elongation, or cannot be specified if it is already elongated, by checking the "waist" of the bolt.
Crom® Head Gasket Set for Volvo Penta AD30A AQAD30A MD30A TAMD30A TD30A TMD30A RO: 3582597 876453
This product replaces the following manufacturer's part nr:
- Volvo Penta: 3582597, 876453, 875031
- Orbitrade: ORB21453, 21453
- Recmar: REC3582597
- Crom order number: 121023
The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
