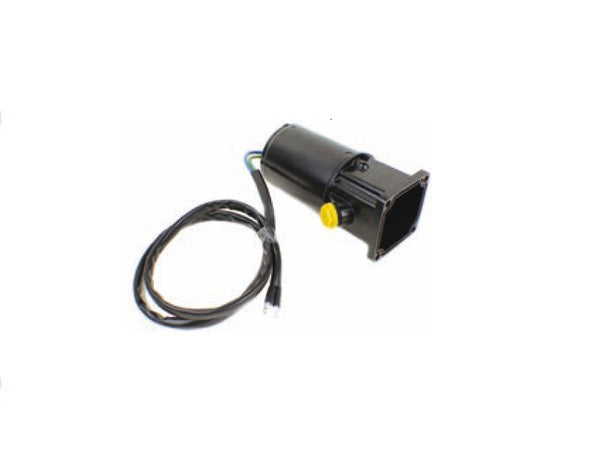

Recmar® Tilt Trim Motor For Mercury Mariner Force 30 HP to 125 HP Single Ram 2 Wire
High-quality marine engine spare parts.
Recmar® Trim motor for Mercury outboards:
- Tilt Trim Motor for late model Mercury Mariner & Force 30 HP to 125 HP
- Outboards with single ram and 2 wire connection with bullet connector terminal ends.
- 30-60 HP EFI 3-cylinder
- up to ~125 HP engines built 1987 and newer
Technical specifications:
- 2‑wire electrical connection
- 4‑bolt flange mount
Important Notice:
To ensure the validity of the 1-year warranty, the trim motor must be properly coated with primer and engine paint. This protective treatment significantly extends the service life of the trim motor by preventing corrosion and environmental damage.
Recmar® Tilt Trim Motor For Mercury Mariner Force 30 HP to 125 HP Single Ram 2 Wire
This product replaces the following manufacturer's part nr:
- Mercury/Mariner: 19217A1-A5, 19217A2, 19217A3, 19217A4, 19217A5, 809885A1, 809885A2, 809885T2, 809956A1, 811674, 811677, 813447, 818903A1, 819177A2, 819479A1, 819480A1, 819762A10, 819762A12, 819762A15, 819762A4, 819762A4-A7, 819762A7, 81977A8-A9, 820545, 822870A1, 823084, 823085, 830150A1, 830150A2, 830150T2, 830250A1, 830250A3, 832021A1, 832021A2, 832021A9, 832021T2, 832021T4, 832021T9, 854472A2, 854472A3, 854472A4, 855654A1-T2, 893517T01, 893907A02, 8M0055011, 8M0090335
- Sierra: SIE18-6777
- Mallory Marine: MAL9-18203
- Arco: 6276
- Protorque: PH200-T003
- API: PT-496NK-2
- Recmar order number: REC893907A02
The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
