Fuel pump for Volvo Penta MD19 MD21 MD29 MD32 RO: 858459 826550 818445

  • €88,00
Tax included.

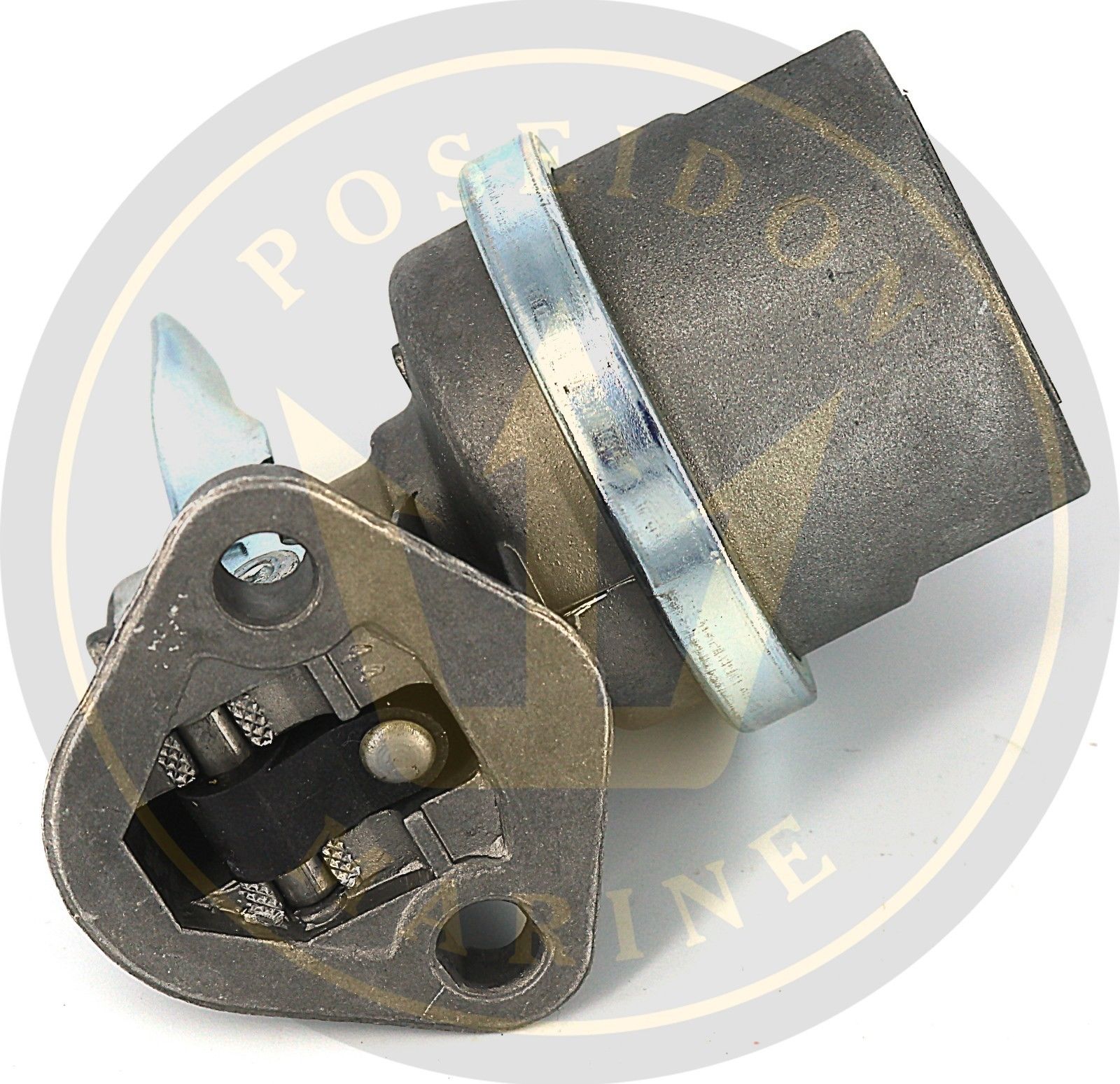

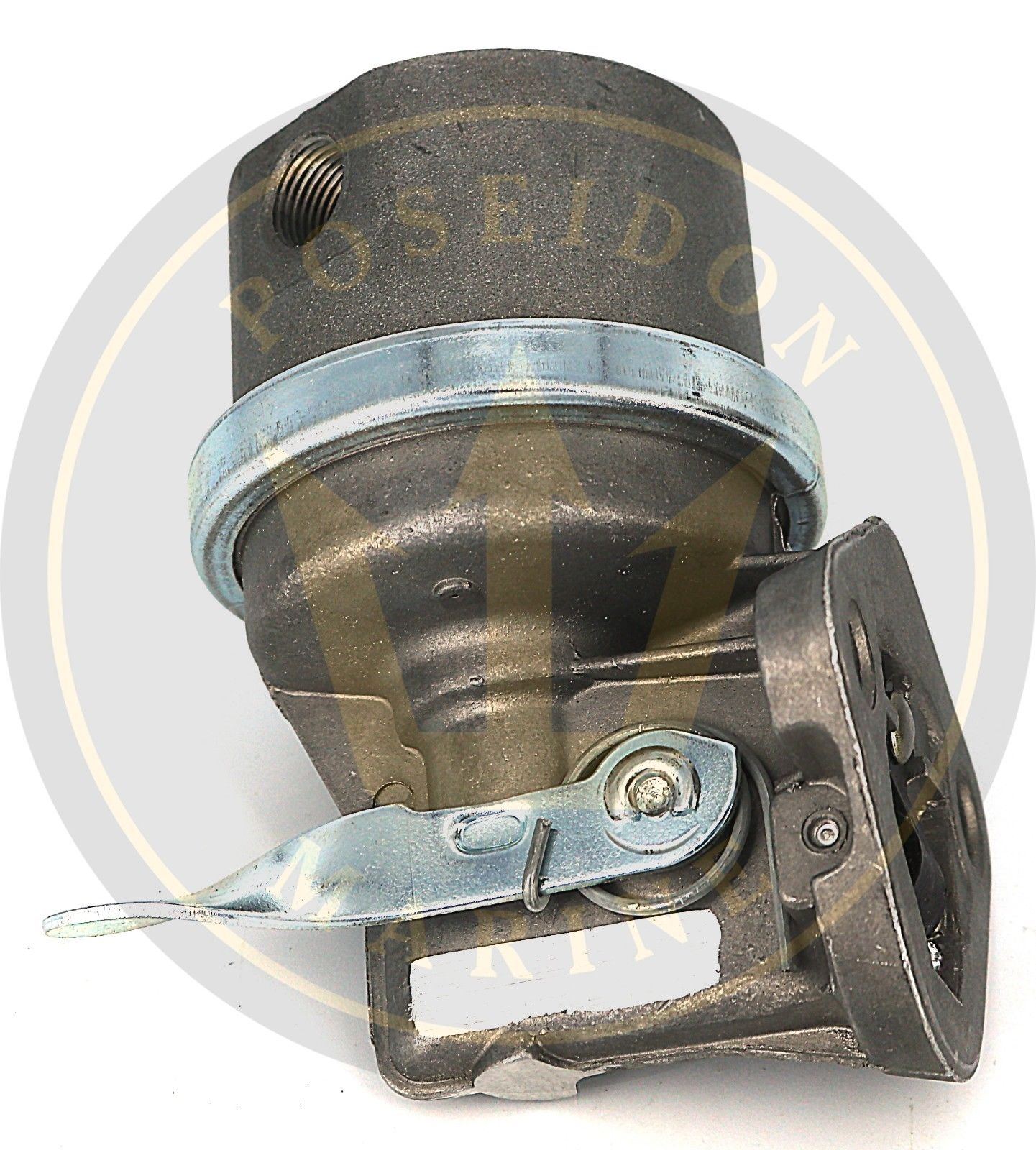

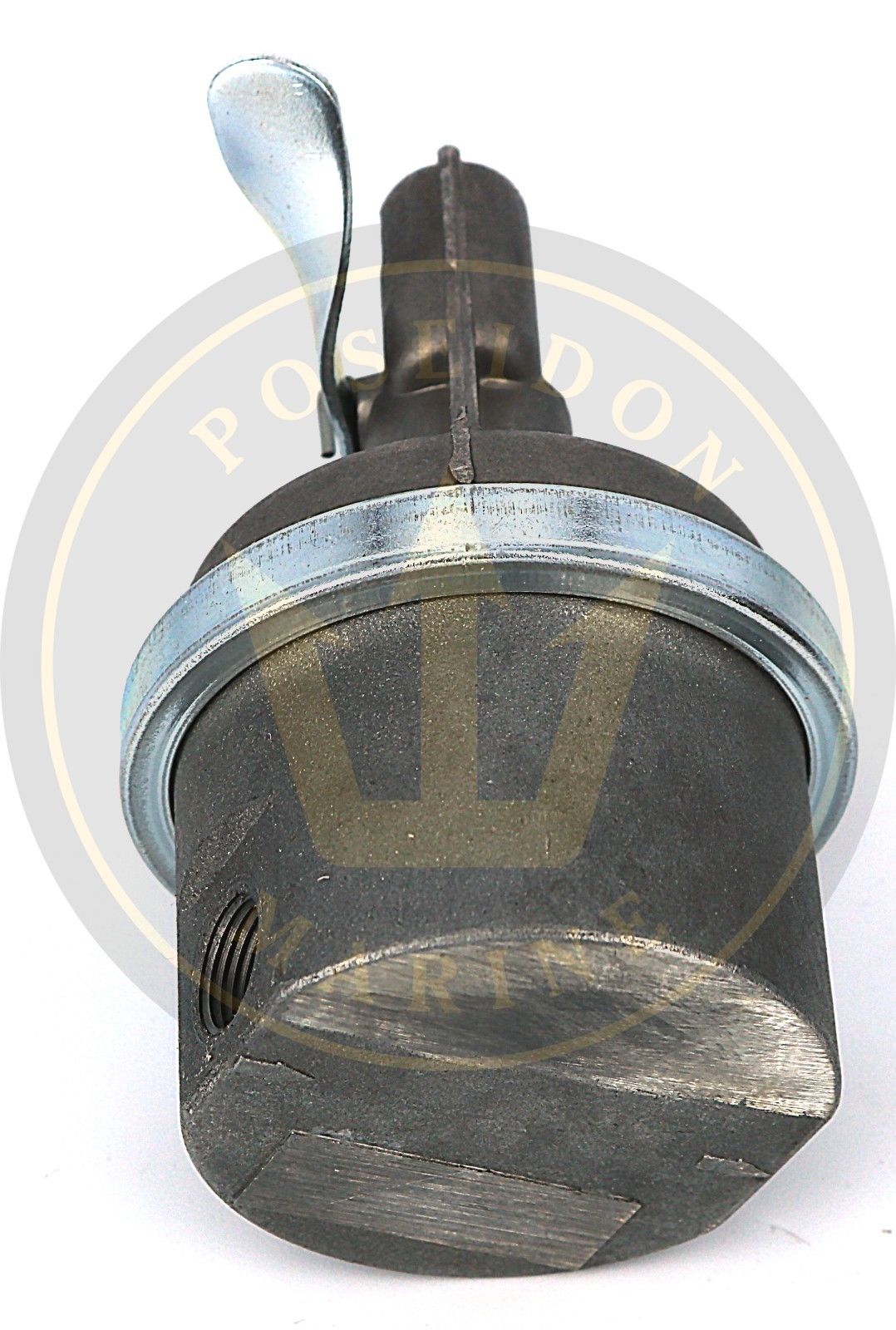

Poseidon Marine mechanical fuel pump assembly.
The lift pump draws fuel from the fuel tank, through various filters, then delivers the fuel to the injection pump. These pumps are either mechanically driven off an eccentric on the camshaft, or driven electrically. The diaphragm is pulled down by the action of the lever arm and then moves upwards by the action of the return spring.
When the diaphragm moves down, it sucks the outlet valve closed, and the inlet valve open. Because the surface of the fuel in the tank is open to atmospheric pressure, fuel is induced into the body of the pump. As the diaphragm returns upwards, it pushes the inlet valve closed, and opens the outlet valve, thus delivering fuel under pressure. Inspect your fuel pump regularly for leaking and replace according to manufacturer's maintenance schedule.
This fuel pump will fit only :
AQD19 MD19
AQD21A AQD21B MD21A MD21B
AQD29 AQD29A MD29 MD29A
AQD32A MD32A
Inlet and Outlet M12X1

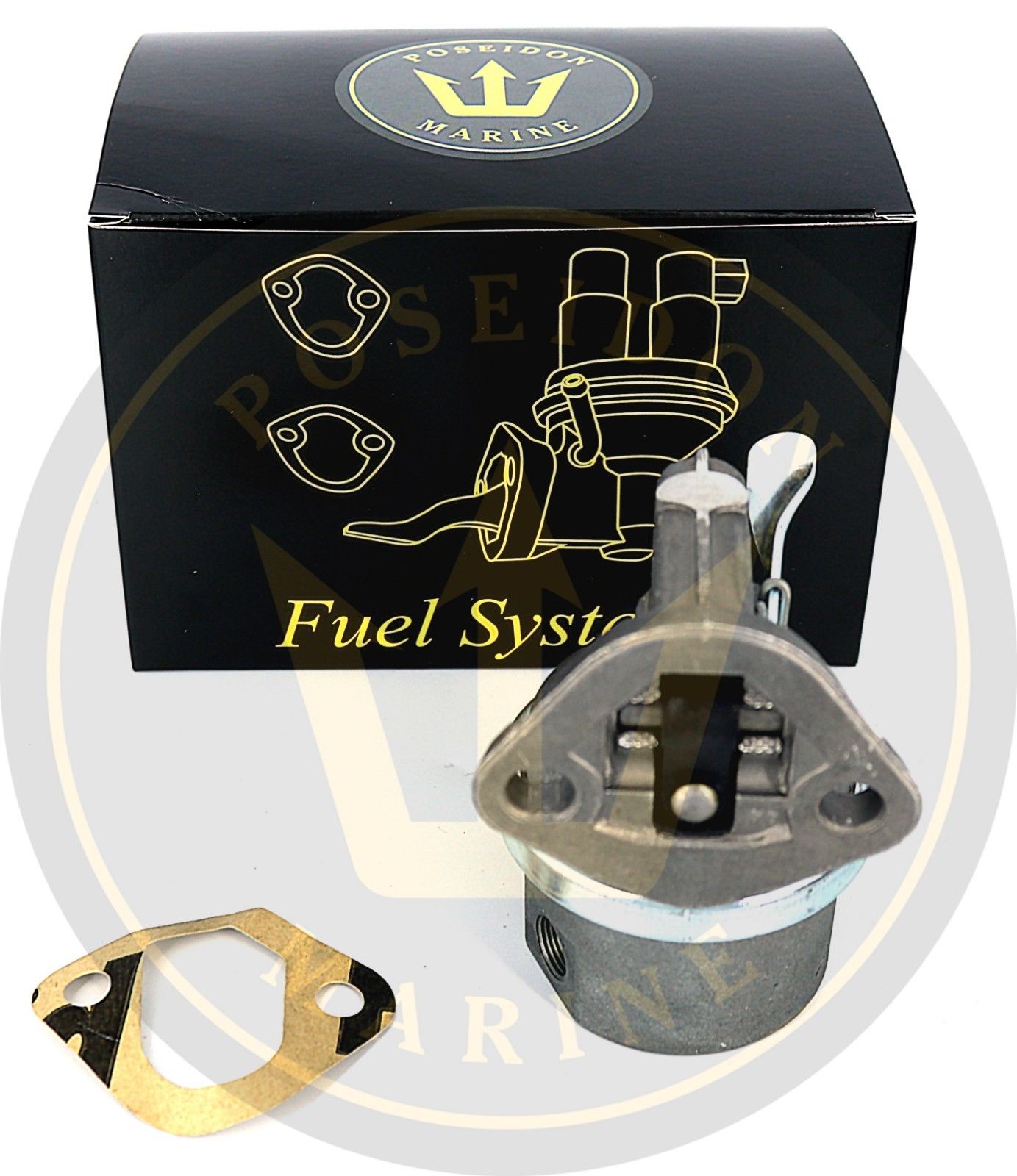

Reference to OEM part number : 858459 826550 818445. Mounting gasket included.
1 Year or 100hours warranty, whichever is met first.
Use of contaminated fuel or old / wrong filter voids warranty.
