ČERPADLO GM2-MRA03

High-quality marine engine spare parts.

Mavi Mare®  Hydraulic Helm Pump GM2-MRA03 GS41073

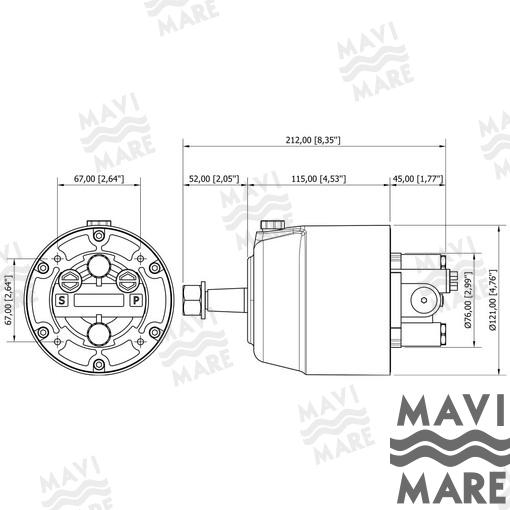

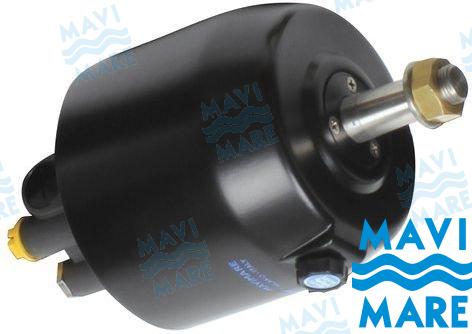

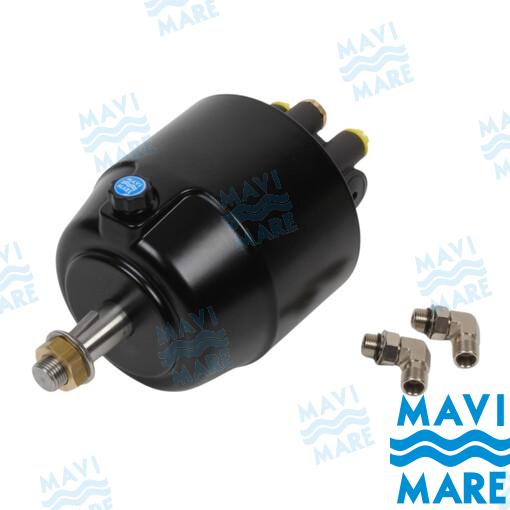

Hydraulic Helm Pump GM2-MRA03

The GM2-MRA03 is a volumetric piston pump designed for frontal mounting. Manufactured with high-quality materials, each component is engineered for strength, durability, and reliable marine performance.

Key Components

• Shaft: Stainless Steel AISI 316

• Rotor: Stainless Steel

• Valve: Brass

• Features: Equipped with non-return and overpressure valve

Technical Specifications

• Mounting: Front

• Volume / Displacement: 32 cm³

• Number of Pistons: 7

• Wheel Turns (lock to lock): 5.2

• Maximum Pressure: 70 bar

• Weight: 3.7 kg

Advantages

• Robust stainless steel construction for long service life in marine environments

• Smooth and precise steering response

• Built-in safety valves ensure reliable operation under pressure

Applications

• Suitable for hydraulic steering systems on larger boats requiring higher displacement capacity
