Fuel pump for Volvo Penta AQ140 A B C AQ151 A B C RO: 841161

  • €49,90

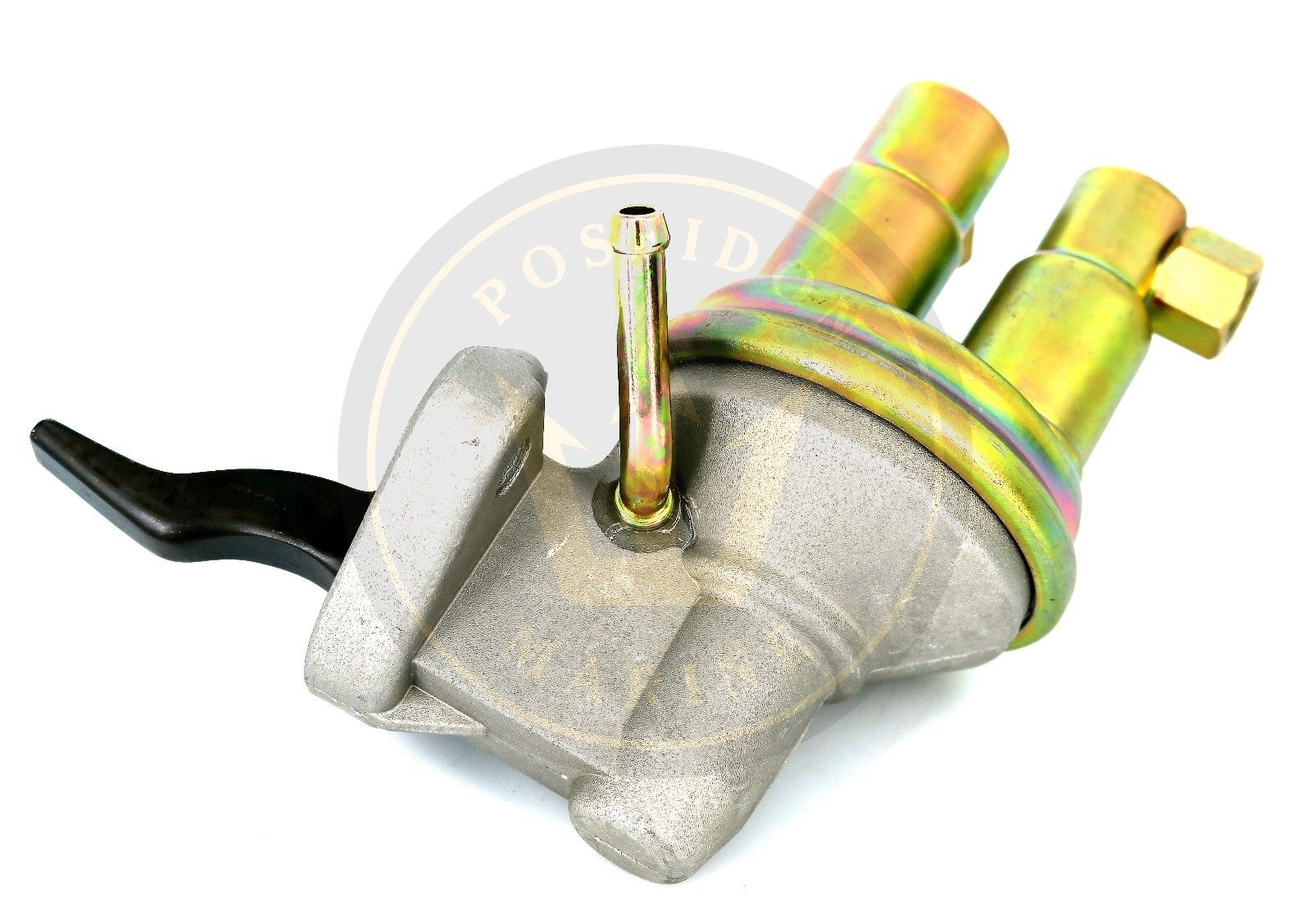

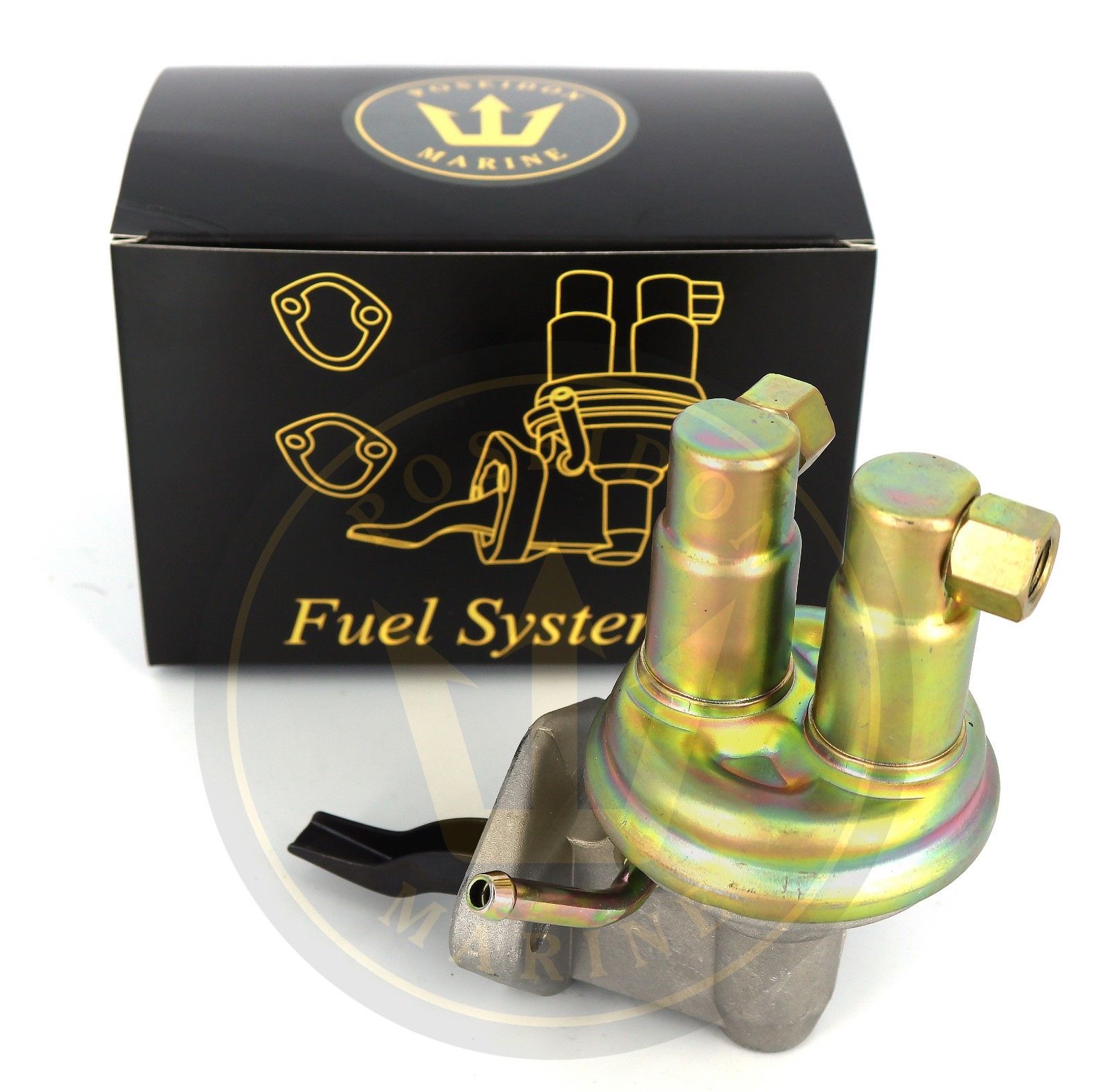

Poseidon Marine mechanical fuel pump assembly.
The lift pump draws fuel from the fuel tank, through various filters, then delivers the fuel to the injection pump. These pumps are either mechanically driven off an eccentric on the camshaft, or driven electrically. The diaphragm is pulled down by the action of the lever arm and then moves upwards by the action of the return spring.
When the diaphragm moves down, it sucks the outlet valve closed, and the inlet valve open. Because the surface of the fuel in the tank is open to atmospheric pressure, fuel is induced into the body of the pump. As the diaphragm returns upwards, it pushes the inlet valve closed, and opens the outlet valve, thus delivering fuel under pressure. Inspect your fuel pump regularly for leaking and replace according to manufacturer's maintenance schedule.
This fuel pump will fit only :
AQ120B*
AQ140A* BB140A*
230A 230B
AQ125B
AQ131A AQ131B AQ131C AQ131D
AQ145A AQ145B BB145A
250A 250B 251A
AQ151A AQ151B AQ151C
AQ171A AQ171C

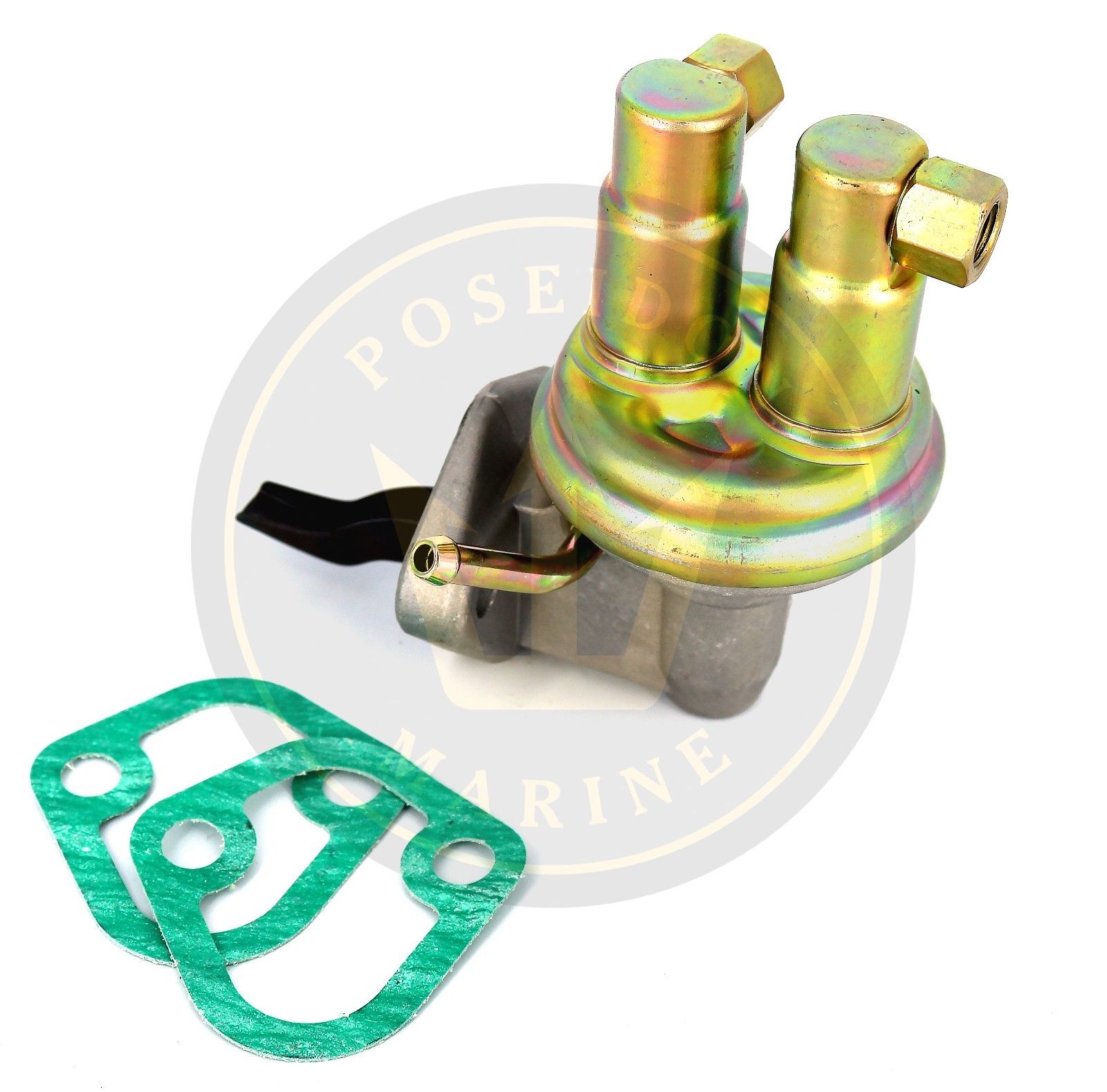

Reference to OEM part number : 841161 . Mounting gasket included.
*Later version
1 Year or 100hours warranty, whichever is met first.
Use of contaminated fuel or old / wrong filter voids warranty.
